MC100EL11DG - onsemi

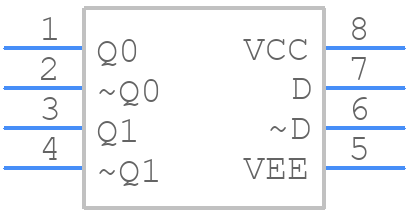

MC100EL11DG Details

• Manufacturer Part Number:

  MC100EL11DG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC-8 Narrow Body

• Pin Count:

  8

• Manufacturer Package Code:

  751-07

• Country Of Origin:

  Philippines

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  5.9

• Additional Feature:

  NECL MODE: VCC=0 WITH VEE= -4.2V TO -5.7V

• Family:

  100EL

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of True Outputs:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  36 mA

• Prop. Delay@Nom-Sup:

  0.385 ns

• Propagation Delay (tpd):

  0.34 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.02 ns

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  5.7 V

• Supply Voltage-Min (Vsup):

  4.2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
