A good PCB layout for the MC100EL14DWG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
Proper termination of the MC100EL14DWG involves using a termination resistor that matches the impedance of the transmission line. The recommended termination scheme is a 50-ohm resistor to VCC or GND, depending on the signal type. Additionally, it's recommended to use a series resistor to limit the current and reduce reflections.
The MC100EL14DWG has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
The MC100EL14DWG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, mat, or workstation, and storing the device in an anti-static bag or container.
The recommended power-up sequence for the MC100EL14DWG is to apply VCC before applying any input signals. This ensures that the device is properly biased and configured before receiving any input signals.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MC100EL14DWG Overview

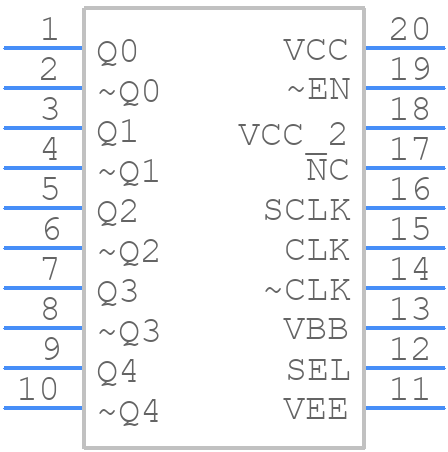

Use the download button to access the MC100EL14DWG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Clock Drivers
