NECL MODE: VCC = 0 WITH VEE = -4.2 TO -5.7V SUPPLY
Family:
100EL
Input Conditioning:
DIFFERENTIAL MUX
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Number of True Outputs:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-EMITTER
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
38 mA
Prop. Delay@Nom-Sup:
0.75 ns
Propagation Delay (tpd):
0.72 ns
Qualification Status:
Not Qualified
Same Edge Skew-Max (tskwd):
0.05 ns
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
5.7 V
Supply Voltage-Min (Vsup):
4.2 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
MC100EL15DG Frequently Asked Questions (FAQs)
A good PCB layout for the MC100EL15DG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. It's also recommended to use a low-impedance power supply and to decouple the power supply lines with capacitors.
To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. Also, ensure that the input signals are within the recommended common-mode voltage range of -2.5V to 2.5V.
The maximum operating frequency of the MC100EL15DG is 1.5 GHz, but it can be limited by the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and layout considerations.
The MC100EL15DG has a maximum junction temperature of 150°C. To ensure proper thermal management, make sure to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. It's also recommended to follow the recommended thermal design guidelines in the datasheet.
The MC100EL15DG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding wrist straps, and using ESD-protected workstations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL15DG Overview

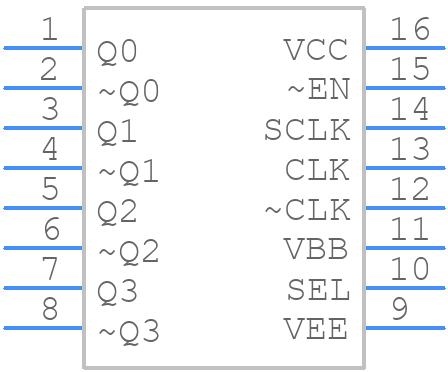

Use the download button to access the MC100EL15DG schematic symbol, PCB footprint, and 3D model.
