Description:> 3 GHz Minimum Shift Frequency; 9-Bit for Byte-Parity Applications; Asynchronous Master Reset; Dual Clocks; PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V; NECL Mode Operating Range: VCC = 0 V with VEE = –3.0 V to –5.5 V; Open Input Default State; Safety Clamp on Inputs
ECL MODE: VCC = 0V WITH VEE = -3V TO -5.5V; SIPO OPERATION ALSO AVAILABLE
Count Direction:
RIGHT
Family:
100E
JESD-30 Code:
S-PQFP-G32
JESD-609 Code:
e3
Length:
7 mm
Logic IC Type:
PARALLEL IN PARALLEL OUT
Max Frequency@Nom-Sup:
3000000000 Hz
Moisture Sensitivity Level:
2
Number of Bits:
9
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
LQFP
Package Equivalence Code:
QFP32,.35SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE
Packing Method:
TRAY
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
150 mA
Propagation Delay (tpd):
0.8 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.6 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
7 mm
fmax-Min:
3000 MHz
MC100EP142FAG Frequently Asked Questions (FAQs)
The recommended PCB layout for the MC100EP142FAG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the use of vias. Additionally, it's recommended to use a low-impedance path for the power supply and to decouple the power supply with capacitors.
To ensure proper termination for high-speed signals, it's recommended to use a 50-ohm termination resistor at the far end of the transmission line, and to use a series termination resistor at the driver output. Additionally, the use of a termination network or a resistive divider can help to improve signal integrity.
The MC100EP142FAG has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
To handle ESD protection for the MC100EP142FAG, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays at the input and output pins. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.
The recommended power supply decoupling for the MC100EP142FAG involves using a combination of ceramic and electrolytic capacitors with a total capacitance of at least 10uF. The capacitors should be placed as close as possible to the device's power pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP142FAG Overview

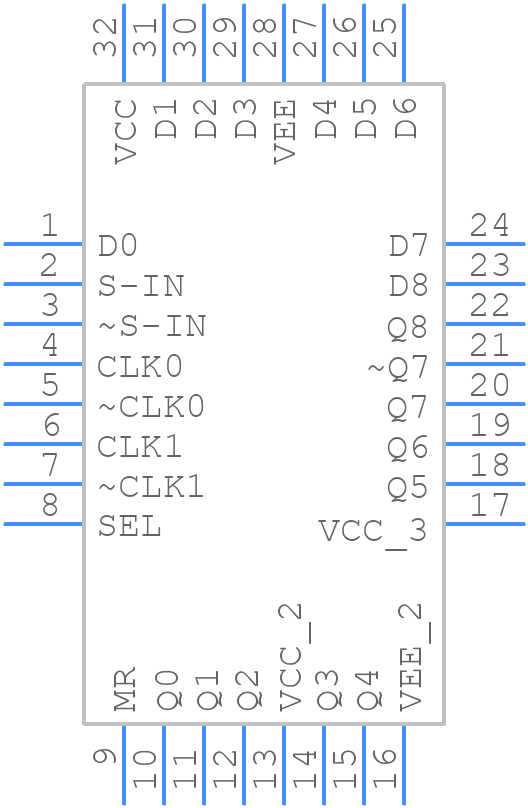

Use the download button to access the MC100EP142FAG schematic symbol and PCB footprint.
