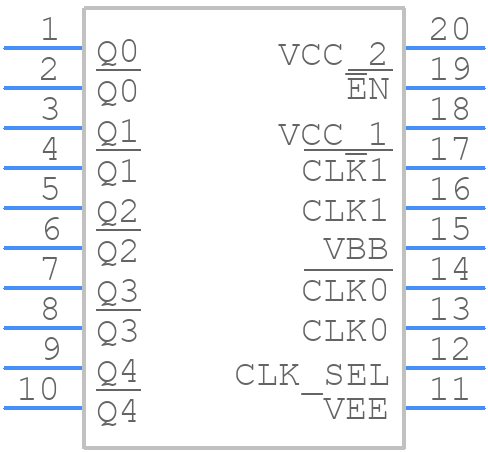

MC100EP14DTG - onsemi

MC100EP14DTG Details

• Manufacturer Part Number:

  MC100EP14DTG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP 20 LEAD

• Package Description:

  TSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  9.48

• Country Of Origin:

  Philippines

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5

• Additional Feature:

  NECL MODE: VCC = 0V WITH VEE = -3V TO -5.5V

• Family:

  100E

• Input Conditioning:

  DIFFERENTIAL MUX

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Length:

  6.5 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  20

• Number of True Outputs:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  0.6 ns

• Propagation Delay (tpd):

  0.45 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.045 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
