MC100EP446FAG - onsemi

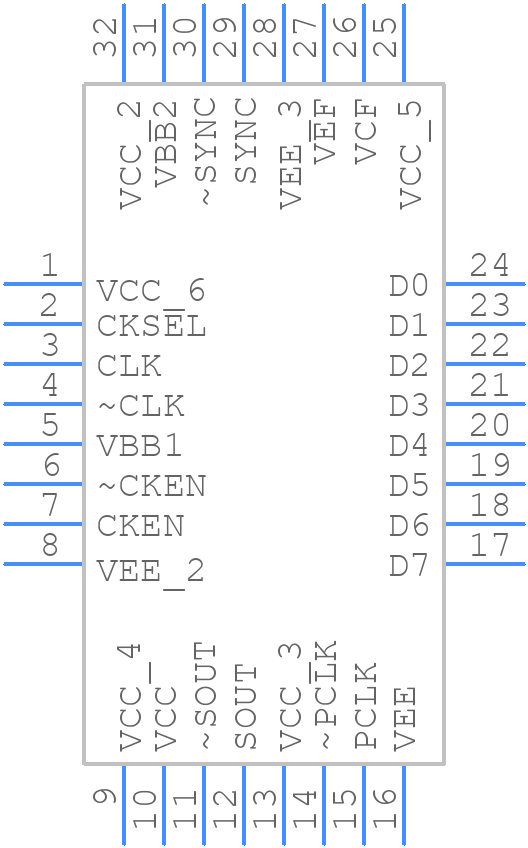

MC100EP446FAG Details

• Manufacturer Part Number:

  MC100EP446FAG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  32 LEAD LQFP 7x7, 0.8P

• Pin Count:

  32

• Manufacturer Package Code:

  561AB

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5

• Additional Feature:

  ECL MODE: VCC = 0V WITH VEE = -3V TO -5.5V

• Count Direction:

  RIGHT

• Family:

  100E

• JESD-30 Code:

  S-PQFP-G32

• JESD-609 Code:

  e3

• Length:

  7 mm

• Logic IC Type:

  PARALLEL IN SERIAL OUT

• Moisture Sensitivity Level:

  2

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  1.025 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  NEGATIVE EDGE

• Width:

  7 mm

• fmax-Min:

  3200 MHz
