MC100EP56MNG - onsemi

Description: VBB Outputs; Q Output will default LOW with inputs open or at VEE; 360ps Typical Propagation Delays; Separate and Common Select; NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -5.5 V; Maximum Frequency > 3 GHz Typical; PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V; Open Input Default State; Safety Clamp on Inputs; Pb-Free Packages are Available

Download MC100EP56MNG Model
Schematic
symbols

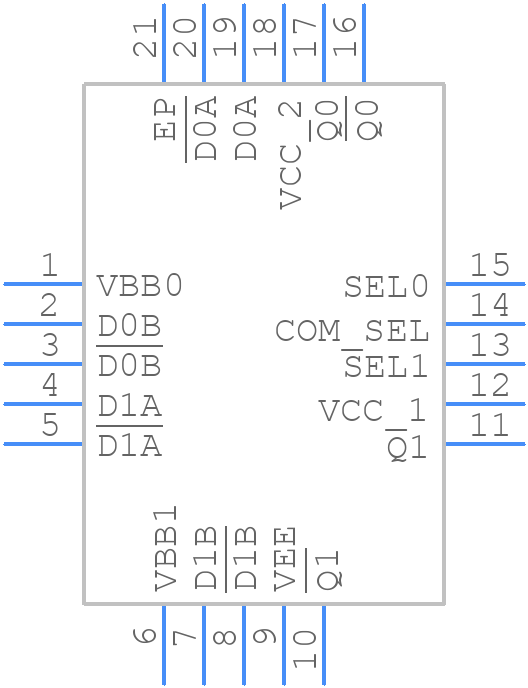

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC100EP56MNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20, 4x4, 0.5P CASE 485E ISSUE C
click to zoom
3D Models
MC100EP56MNG - onsemi  - 3D model - Quad Flat No-Lead - QFN20, 4x4, 0.5P CASE 485E ISSUE C
click to zoom

MC100EP56MNG Details

  • Manufacturer Part Number:

    MC100EP56MNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN20, 4x4, 0.5P

  • Pin Count:

    20

  • Manufacturer Package Code:

    48.5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    NECL MODE OPERATING RANGE: VCC = 0 V WITH VEE = -3.0 V TO -5.5 V

  • Family:

    100E

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    MULTIPLEXER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    2

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    SERIES-RESISTOR

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    80 mA

  • Prop. Delay@Nom-Sup:

    0.5 ns

  • Propagation Delay (tpd):

    0.47 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MC100EP56MNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EP56MNG involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
  • Proper termination of the MC100EP56MNG involves using a combination of series and parallel resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but it's also recommended to consult with a signal integrity expert or use simulation tools to optimize the termination scheme.
  • The MC100EP56MNG has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for specific derating guidelines.
  • The MC100EP56MNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize static electricity.
  • The recommended power-up sequence for the MC100EP56MNG involves powering up the VCC pin first, followed by the VEE pin. This ensures that the internal biasing circuitry is properly initialized. Consult the datasheet for specific power-up sequence guidelines.
