The recommended PCB layout for the MC100EP57MNG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the use of vias. Additionally, it's recommended to use a low-impedance path for the VCC and GND pins to reduce noise and ensure stable operation.
To ensure proper termination for high-speed signals, it's recommended to use a 50-ohm termination resistor at the far end of the transmission line, and to match the impedance of the transmission line to the output impedance of the MC100EP57MNG. Additionally, it's recommended to use a series termination resistor at the output of the device to reduce reflections and improve signal integrity.
The maximum operating temperature range for the MC100EP57MNG is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To handle ESD protection for the MC100EP57MNG, it's recommended to use a combination of ESD protection devices, such as TVS diodes and ESD protection arrays, at the input and output pins of the device. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
The recommended power-up sequence for the MC100EP57MNG involves applying the VCC supply voltage before applying the input signals. It's also recommended to ensure that the VCC supply voltage is stable and within the recommended operating range before applying the input signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP57MNG Overview

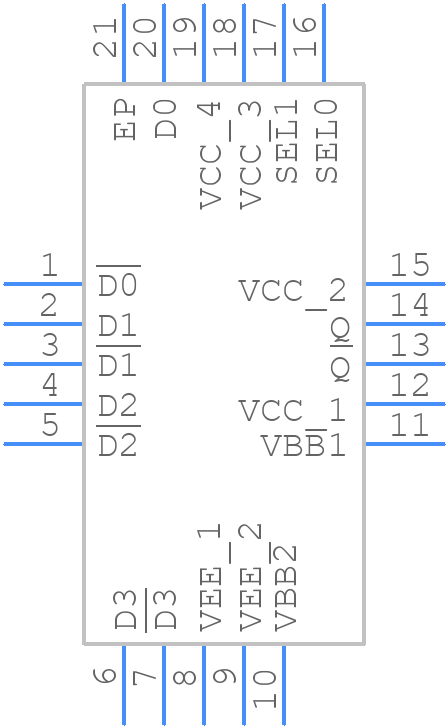

Use the download button to access the MC100EP57MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Multiplexer/Demultiplexers
