The recommended PCB layout for optimal performance of the MC100EP809FAG involves using a 4-layer board with a solid ground plane, placing the device near the center of the board, and using short, direct traces for the clock and data signals. Additionally, it is recommended to use a common mode filter or a ferrite bead to reduce EMI emissions.
To ensure signal integrity when using the MC100EP809FAG at high frequencies, it is recommended to use a controlled impedance PCB, terminate the transmission lines with the correct impedance, and use a low-jitter clock source. Additionally, it is recommended to use a signal integrity analysis tool to simulate and optimize the design.
The maximum operating temperature range for the MC100EP809FAG is -40°C to 125°C. However, it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To handle ESD protection for the MC100EP809FAG, it is recommended to use a electrostatic discharge (ESD) protection device, such as a TVS diode or a Zener diode, on the input and output pins. Additionally, it is recommended to follow proper handling and storage procedures to prevent ESD damage.
The recommended power supply decoupling for the MC100EP809FAG involves using a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed as close as possible to the device. This helps to reduce noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP809FAG Overview

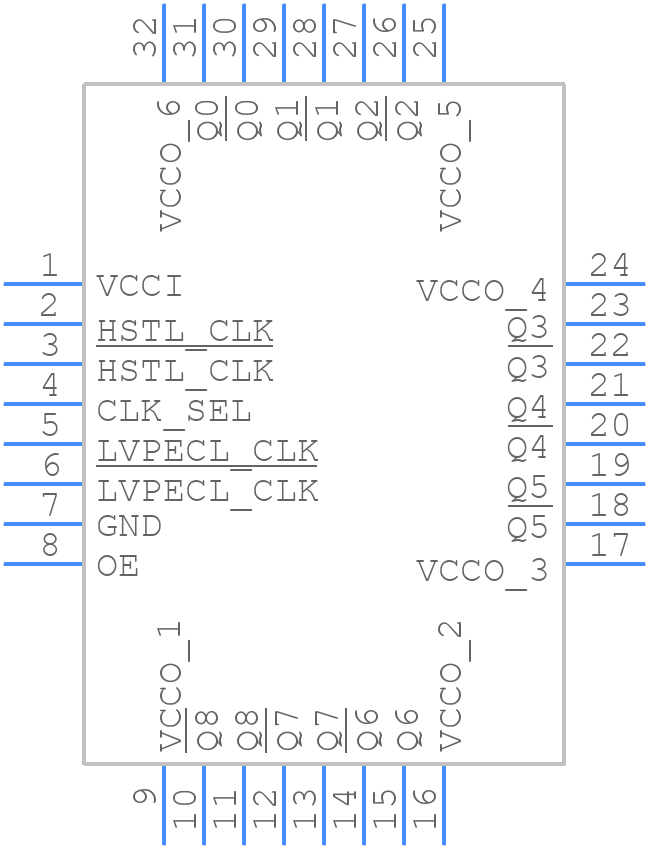

Use the download button to access the MC100EP809FAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Clock Drivers
