A good PCB layout for the MC100LVEL90DWG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper decoupling, place a 0.1uF ceramic capacitor between the VCC and GND pins, as close to the device as possible. Additionally, use a 10uF bulk capacitor between the power supply and the PCB's power plane to filter out noise and ripple.
The MC100LVEL90DWG is specified to operate up to 100 MHz, but it can be pushed to higher frequencies with proper PCB layout and decoupling. However, it's essential to ensure that the device is operated within its specified power supply voltage range and that the input signals are within the recommended voltage levels.
The MC100LVEL90DWG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) between the device and the PCB. Additionally, provide adequate airflow around the device to prevent overheating.
The MC100LVEL90DWG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100LVEL90DWG Overview

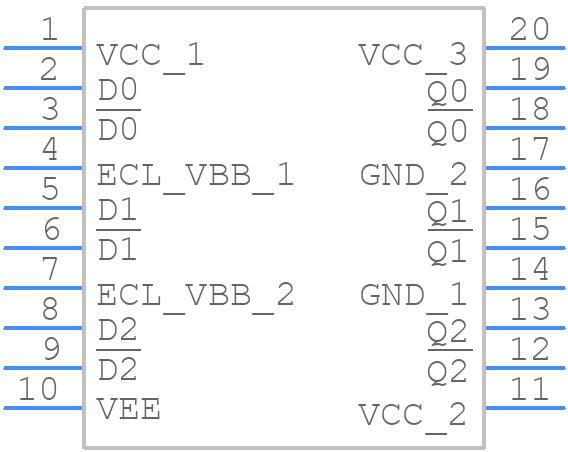

Use the download button to access the MC100LVEL90DWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Level Translators
