Description:Maximum Frequency >3 Ghz; NECL Mode Operating Range: VCC = 0 V with VEE = -2.375 V to -3.8 V; 85 ps Typical Device-to-Device Skew; VBBOutput; PECL and HSTL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V; 350 ps Typical Propagation Delay; 20 ps Typical Output-to-Output Skew; Jitter Less than 1 ps RMS; The 100 Series Contains Temperature Compensation; Open Input Default State; LVDS Input Compatible
The recommended PCB layout for the MC100LVEP210FARG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 50-ohm transmission line for the input and output signals.
The MC100LVEP210FARG has a maximum junction temperature of 150°C. To handle thermal management, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. The thermal resistance of the package is 25°C/W, so it's essential to calculate the junction temperature rise based on the power dissipation and thermal resistance.
The MC100LVEP210FARG is a differential ECL device, and it requires proper termination to ensure signal integrity. The recommended input termination is a 50-ohm resistor in series with a 50-ohm resistor to VCC, and the recommended output termination is a 50-ohm resistor to VCC or VEE.
To ensure signal integrity with the MC100LVEP210FARG, it's recommended to use a controlled impedance PCB, minimize the distance between the device and the load, and use a signal integrity analysis tool to simulate the signal transmission. Additionally, it's essential to follow the recommended input and output termination schemes and to use a common mode filter if necessary.
The MC100LVEP210FARG requires a stable power supply to ensure proper operation. It's recommended to use a 0.1uF ceramic capacitor in parallel with a 10uF tantalum capacitor for power supply decoupling. The capacitors should be placed as close as possible to the device's power pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100LVEP210FARG Overview

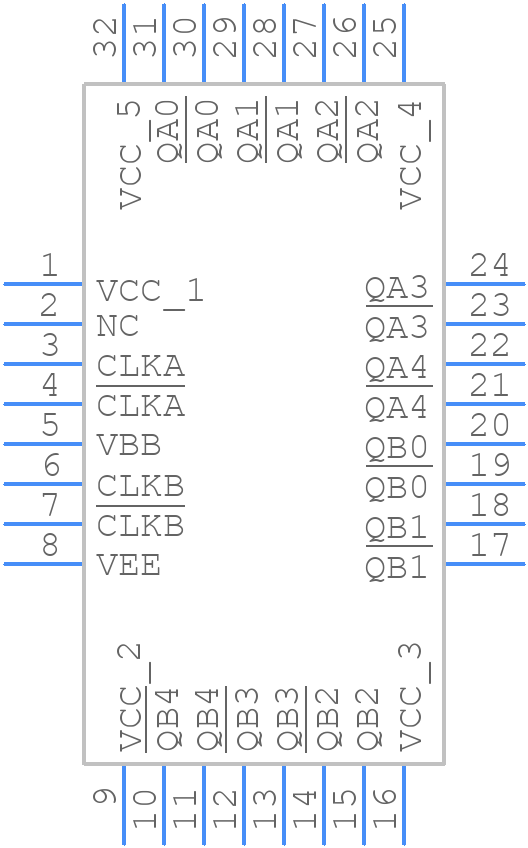

Use the download button to access the MC100LVEP210FARG schematic symbol, PCB footprint, and 3D model.
