MC10116L footprint, schematic symbol and 3D model by Motorola

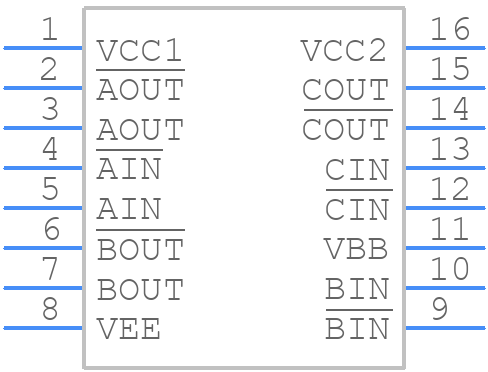

Symbol

click to zoom

PCB Footprints

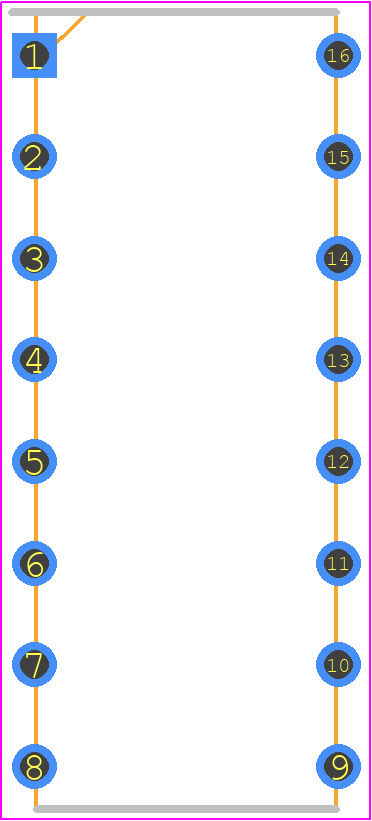

MC10116L - Motorola PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - CDIP–16 L SUFFIX CERAMIC DIP PACKAGE

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC10116L
Part Number MC10116L
Manufacturer Motorola
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - CDIP–16 L SUFFIX CERAMIC DIP PACKAGE
Released Date Dec 7, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MC10116L Details

Manufacturer Part Number:
MC10116L
Part Life Cycle Code:
Transferred
Package Description:
CERAMIC, DIP-16
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Motorola Semiconductor Products
Differential Output:
YES
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
LINE RECEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-GDIP-T16
JESD-609 Code:
e0
Length:
19.495 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Output Characteristics:
OPEN-EMITTER
Output Polarity:
COMPLEMENTARY
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Receive Delay-Max:
3.3 ns
Receiver Number of Bits:
3
Seated Height-Max:
5.08 mm
Supply Current-Max:
23 mA
Surface Mount:
NO
Technology:
ECL
Temperature Grade:
OTHER
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm
