MC10E211FNG - onsemi

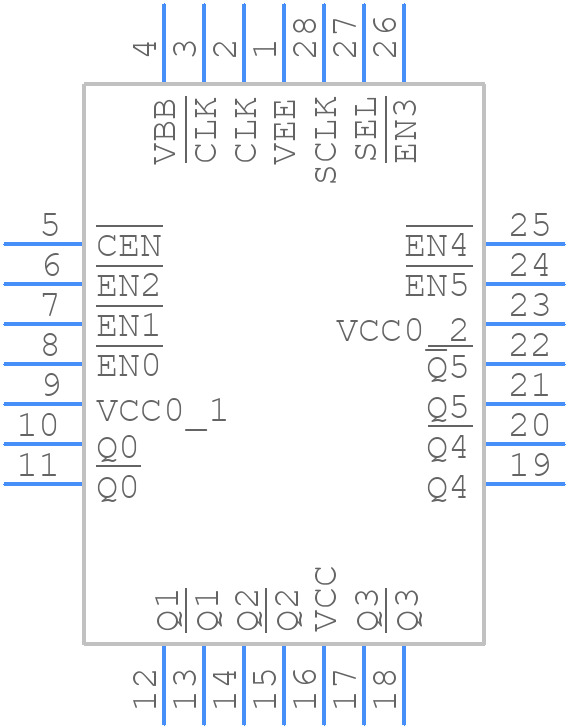

MC10E211FNG Details

• Manufacturer Part Number:

  MC10E211FNG

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

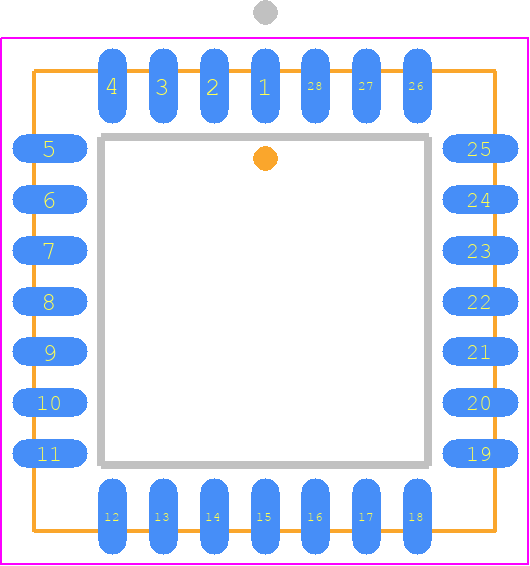

• Part Package Code:

  QLCC

• Package Description:

  LEAD FREE, PLASTIC, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  776-02

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  NECL MODE: VCC = 0 WITH VEE = -4.2V TO -5.7V

• Family:

  10E

• Input Conditioning:

  DIFFERENTIAL MUX

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of True Outputs:

  6

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  OPEN-EMITTER

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  1.2 ns

• Propagation Delay (tpd):

  1.125 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.075 ns

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.7 V

• Supply Voltage-Min (Vsup):

  4.2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.505 mm
