MC10EP016FAR2G - onsemi

Description: PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V; NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -5.5 V; 500 ps Typical Propagation Delay; Internal TCbar Feedback (Gated); Fully Synchronous Counting and TCbar Generation; Asynchronous Master Reset; VBB Output; 8-Bit; Addition of COUT and COUTbar; Differential Clock Input; Safety Clamp on Inputs; Open Input Default State; Pb-Free Packages are Available

Download MC10EP016FAR2G Model

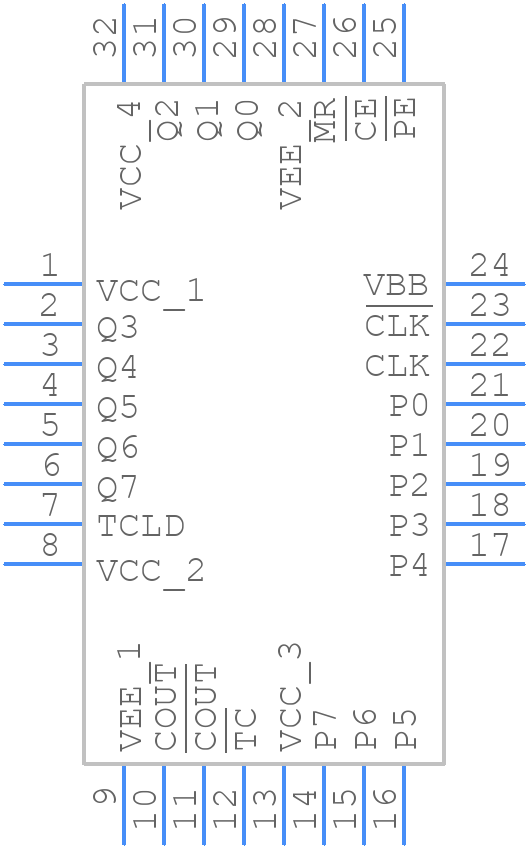

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC10EP016FAR2G - onsemi PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP FA SUFFIX CASE 873A-02 ISSUE B
click to zoom
3D Models
MC10EP016FAR2G - onsemi  - 3D model - Quad Flat Packages - LQFP FA SUFFIX CASE 873A-02 ISSUE B
click to zoom

MC10EP016FAR2G Details

  • Manufacturer Part Number:

    MC10EP016FAR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32 LEAD LQFP 7x7, 0.8P

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    561AB

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.85

  • Additional Feature:

    NECL MODE: 0V VCC WITH VEE = -3.0V TO -5.5V

  • Count Direction:

    UP

  • Family:

    10E

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Load/Preset Input:

    YES

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    1000000000 Hz

  • Mode of Operation:

    SYNCHRONOUS

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    200 mA

  • Prop. Delay@Nom-Sup:

    0.7 ns

  • Propagation Delay (tpd):

    0.65 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7 mm

  • fmax-Min:

    1300 MHz

MC10EP016FAR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC10EP016FAR2G involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
  • To ensure proper termination, it's recommended to use a 50-ohm termination resistor at the far end of the transmission line, and to match the impedance of the transmission line to the output impedance of the device. Additionally, it's recommended to use a series termination resistor at the output of the device to reduce reflections.
  • The MC10EP016FAR2G has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • To handle ESD protection, it's recommended to use a combination of ESD protection devices, such as TVS diodes and ESD protection arrays, at the input and output pins of the device. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.
  • The recommended power-up sequence for the MC10EP016FAR2G is to power up the VCC pin first, followed by the VEE pin, and then the input signals. This sequence helps to prevent latch-up and ensures proper device operation.
