Description:VBB Outputs; Q Output will default LOW with inputs open or at VEE; 360ps Typical Propagation Delays; Separate and Common Select; NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -5.5 V; Maximum Frequency > 3 GHz Typical; PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V; Open Input Default State; Safety Clamp on Inputs; Pb-Free Packages are Available
NECL MODE OPERATING RANGE: VCC = 0 V WITH VEE = -3.0 V TO -5.5 V
Family:
10E
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Logic IC Type:
MULTIPLEXER
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Inputs:
2
Number of Outputs:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
SERIES-RESISTOR
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
RAIL
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
78 mA
Prop. Delay@Nom-Sup:
0.5 ns
Propagation Delay (tpd):
0.47 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
MC10EP56DTG Frequently Asked Questions (FAQs)
A good PCB layout for the MC10EP56DTG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure signal integrity, use controlled impedance traces, keep the signal paths short, and avoid vias and stubs. Also, use a termination resistor at the receiving end, and consider using a signal integrity model to simulate and optimize the design.
The MC10EP56DTG is specified to operate up to 3.2 Gbps, but the actual maximum frequency depends on the specific application, PCB layout, and signal quality. In general, it's recommended to derate the frequency by 10-20% to ensure reliable operation.
The MC10EP56DTG requires a specific power sequencing order: VCC, then VEE. The device can tolerate a supply voltage range of 3.3V ± 10%. Ensure that the power supply is stable and well-regulated to prevent voltage droop or overshoot.
The MC10EP56DTG has a thermal resistance of 45°C/W. To manage thermal performance, use a heat sink or thermal pad, ensure good airflow, and avoid blocking the airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC10EP56DTG Overview

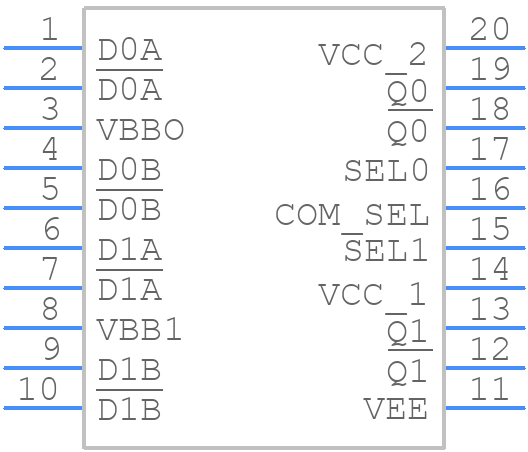

Use the download button to access the MC10EP56DTG schematic symbol, PCB footprint, and 3D model.
