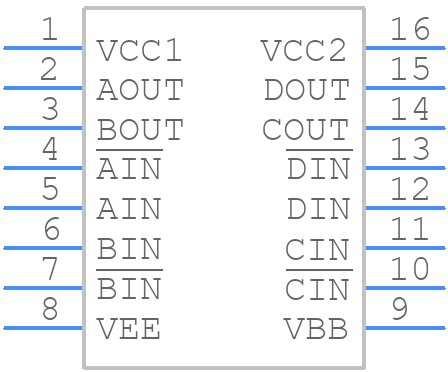

MC10H115PG - onsemi

MC10H115PG Details

• Manufacturer Part Number:

  MC10H115PG

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  LEAD FREE, PLASTIC, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  648-08

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Differential Output:

  NO

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.175 mm

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  75 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  1.3 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  4.44 mm

• Supply Current-Max:

  29 mA

• Supply Voltage-Max:

  -5.46 V

• Supply Voltage-Min:

  -4.94 V

• Supply Voltage-Nom:

  -5.2 V

• Surface Mount:

  NO

• Technology:

  ECL

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
