MC14001B - onsemi

Description: Logic Gates LOG CMOS GATE NOR QUAD

Download MC14001B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC14001B model

Email notifications will be applied after download.

Send part feedback

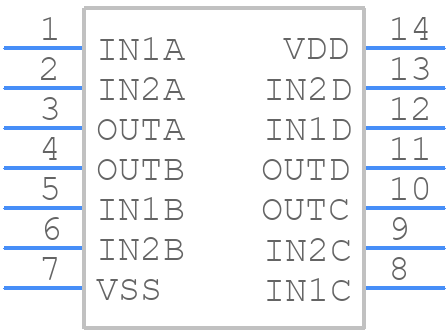

Symbol

MC14001B - onsemi - PCB symbol

PCB Footprints

MC14001B - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOEIAJ−14 CASE 965 ISSUE B*

3D Models

MC14001B - onsemi - 3D model - Small Outline Packages - SOEIAJ−14 CASE 965 ISSUE B*

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC14001B
Part Number MC14001B
Manufacturer onsemi
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOEIAJ−14 CASE 965 ISSUE B*
Released Date Jan 16, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
