Description:Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range.; Pin-for-Pin Replacements for Corresponding CD4000 Series B Suffix Devices; All Outputs Buffered; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; Pb-Free Packages are Available*
The recommended operating voltage range for the MC14001BDG is 3.0V to 18V, with a typical operating voltage of 5V.
To ensure linear operation, the MC14001BDG requires a bias voltage of at least 2.5V between the input and output pins. Additionally, the input voltage should be within the recommended operating range, and the output should be terminated with a load impedance of at least 1kΩ.
The maximum power dissipation of the MC14001BDG is 1.5W, with a thermal resistance of 125°C/W. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
While the MC14001BDG can be used in high-frequency applications, its bandwidth is limited to around 10MHz. For higher frequency applications, consider using a more specialized amplifier or switch, such as the MC1350 or MC1550.
To minimize noise and oscillations, ensure proper bypassing of the power supply lines, use a low-ESR capacitor for decoupling, and keep the input and output traces as short as possible. Additionally, consider adding a small resistor (e.g., 10Ω) in series with the input to reduce oscillations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC14001BDG Overview

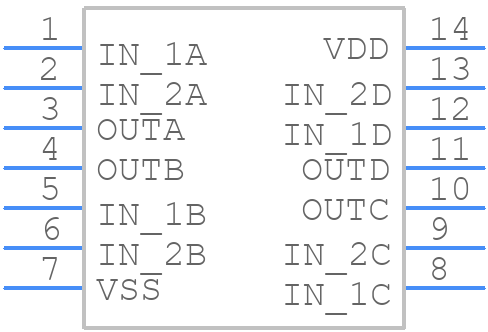

Use the download button to access the MC14001BDG schematic symbol, PCB footprint, and 3D model.
