The recommended operating voltage range for the MC14015BCP is 3.0V to 18V, although it can tolerate up to 20V for short periods.
To ensure linear operation, the MC14015BCP requires a bias voltage of at least 1.5V between the input and output pins. Additionally, the input voltage should be within 1V of the supply voltage.
The maximum power dissipation for the MC14015BCP is 500mW. Exceeding this limit can cause the device to overheat and potentially fail.
While the MC14015BCP can be used as a voltage regulator, it's not recommended due to its limited current capability and lack of built-in voltage regulation features. Instead, consider using a dedicated voltage regulator IC.
To protect the MC14015BCP from ESD, use proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider adding ESD protection diodes or resistors to the circuit design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC14015BCP Overview

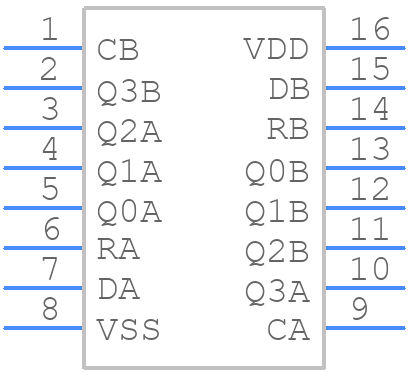

Use the download button to access the MC14015BCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140,
or try a keyword search, such as Shift Registers
