MC14046BCP - onsemi

Description: Phase locked loop,MC14046BCP DIP16 25pcs

Download MC14046BCP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

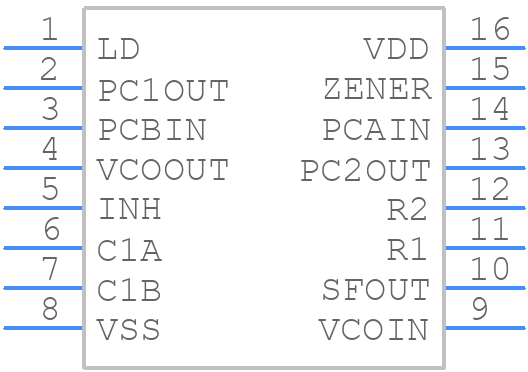

Symbol
MC14046BCP - onsemi - PCB symbol
click to zoom
PCB Footprints
MC14046BCP - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 648–08 ISSUE R
click to zoom
3D Models
MC14046BCP - onsemi - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 648–08 ISSUE R
click to zoom

MC14046BCP Details

  • Manufacturer Part Number:

    MC14046BCP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE AT 10V OR 15V NOMINAL

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MC14046BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14046BCP is 3.0V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink or ground. The voltage difference between VCC and VEE should be within the recommended operating range.
  • The maximum frequency of operation for the MC14046BCP is typically around 10MHz, although this can vary depending on the specific application and operating conditions.
  • To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink if the device will be operating at high temperatures or high power levels.
  • For optimal performance, keep the layout and routing as symmetrical as possible, and minimize the length of the input and output traces. Also, avoid running high-frequency signals near the device's power pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC14046BCP Overview

Use the download button to access the MC14046BCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as PLL or Frequency Synthesis Circuits
