MC14046BDWR2G - onsemi

Description: Buffered Outputs Compatible with HTL and Low-Power TTL; Supply Voltage Range = 3.0 to 18 V; Phase Comparator 1 is an Exclusive Or Gate and is Duty Cycle Limited; Pin-for-Pin Replacement for CD4046B; Phase Comparator 2 switches on Rising Edges and is not Duty Cycle; Diode Protection on All Inputs; Pb-Free Packages are Available*

Download MC14046BDWR2G Model

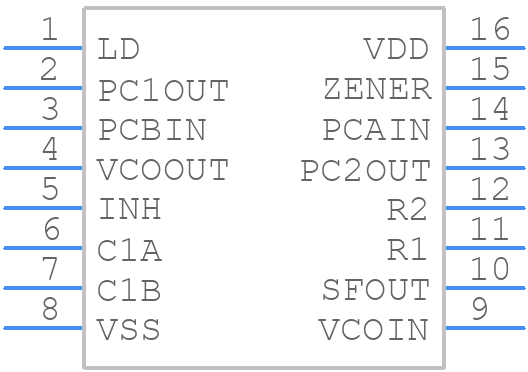

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14046BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 WB DW SUFFIX
click to zoom
3D Models
MC14046BDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 WB DW SUFFIX
click to zoom

MC14046BDWR2G Details

  • Manufacturer Part Number:

    MC14046BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-16 WB

  • Pin Count:

    16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    IT CAN ALSO OPERATE AT 10V OR 15V NOMINAL

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MC14046BDWR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14046BDWR2G is 4.5V to 18V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
  • The maximum frequency of operation for the MC14046BDWR2G is 10MHz.
  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents.
  • The recommended storage temperature range for the MC14046BDWR2G is -65°C to 150°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC14046BDWR2G Overview

Use the download button to access the MC14046BDWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as PLL or Frequency Synthesis Circuits
