MC143150B1FU - Motorola

MC143150B1FU Details

• Manufacturer Part Number:

  MC143150B1FU

• Part Life Cycle Code:

  Obsolete

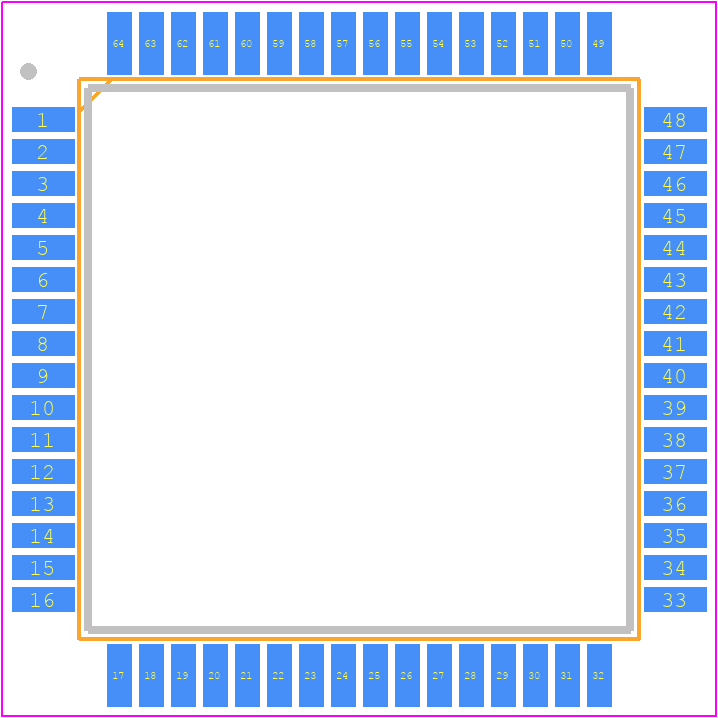

• Package Description:

  PLASTIC, QFP-64

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Additional Feature:

  3 PIPELINED PROCESSORS; 512 X 8 EEPROM

• Address Bus Width:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  10 MHz

• Communication Protocol:

  SYNC, BYTE

• Data Encoding/Decoding Method:

  BIPH-SPACE(FM0)

• Data Transfer Rate-Max:

  0.15625 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e0

• Length:

  10 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  11

• Number of Serial I/Os:

  1

• Number of Terminals:

  64

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP64,.66SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (words):

  1024

• Seated Height-Max:

  2.21 mm

• Supply Current-Max:

  25 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
