MC14513BCP - onsemi

MC14513BCP Details

• Manufacturer Part Number:

  MC14513BCP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

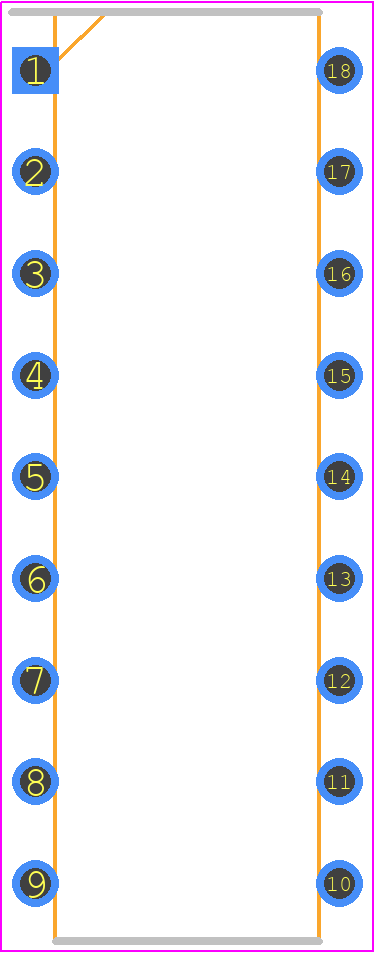

  PLASTIC, DIP-18

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Family:

  4000/14000/40000

• Input Conditioning:

  LATCHED

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e0

• Length:

  22.73 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

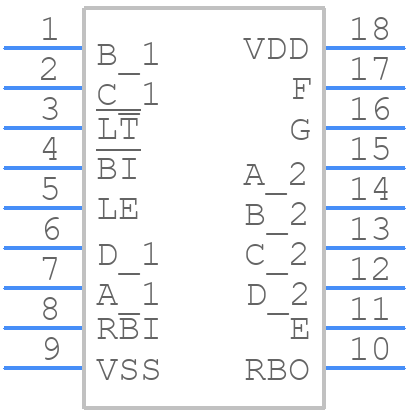

  SEVEN SEGMENT DECODER/DRIVER

• Max I(ol):

  0.001 A

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  235

• Prop. Delay@Nom-Sup:

  1440 ns

• Propagation Delay (tpd):

  1440 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
