SERIAL OUTPUT, ALL CONTROL INPUTS POSITIVE-EDGE TRIGGERED
Count Direction:
RIGHT
Family:
4000/14000/40000
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
10.3 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup:
15000000 Hz
Moisture Sensitivity Level:
3
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
0.6 mA
Propagation Delay (tpd):
1000 ns
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
7.5 mm
fmax-Min:
2 MHz
MC14559BDWR2G Frequently Asked Questions (FAQs)
The recommended operating voltage range for the MC14559BDWR2G is 2.7V to 5.5V, although it can operate down to 2.3V with reduced performance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or providing adequate airflow.
The maximum clock frequency that the MC14559BDWR2G can support is 2.5 MHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
The POR and BOR features of the MC14559BDWR2G can be handled by connecting a capacitor to the VDD pin and ensuring that the power supply ramps up slowly during power-on. This allows the device to reset properly and avoid unwanted resets during power-on or brown-out conditions.
To minimize noise and EMI, it is recommended to follow good layout and routing practices, such as keeping the device's power and ground pins close together, using a solid ground plane, and avoiding long traces and loops. Additionally, it is recommended to use a decoupling capacitor between the VDD and VSS pins to filter out noise and reduce EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC14559BDWR2G Overview

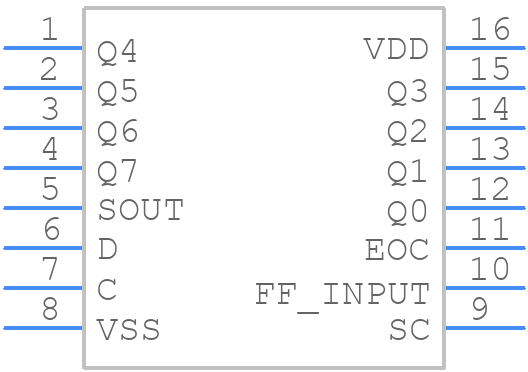

Use the download button to access the MC14559BDWR2G schematic symbol, PCB footprint, and 3D model.
