MC1496BP - onsemi

Description: Balanced Modulator and Demodulator

Download MC1496BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

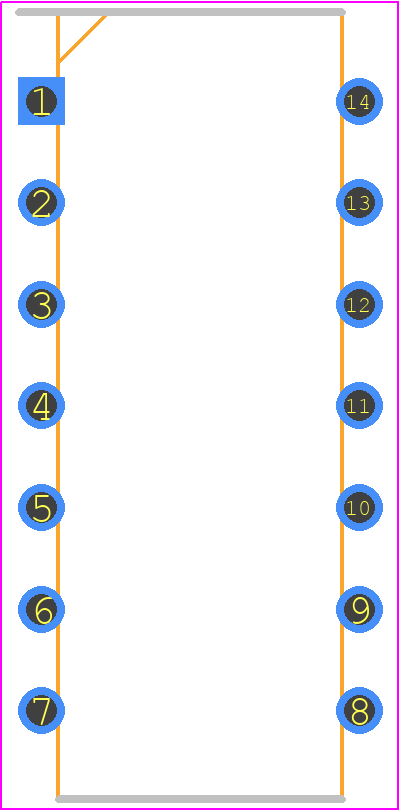

MC1496BP - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-14 CASE 646-06 ISSUE R
click to zoom
3D Models
MC1496BP - onsemi  - 3D model - Dual-In-Line Packages - PDIP-14 CASE 646-06 ISSUE R
click to zoom

MC1496BP Details

  • Manufacturer Part Number:

    MC1496BP

  • Brand Name:

    onsemi

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-14

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    646-06

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.19 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MC1496BP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC1496BP is 5V to 15V, although it can operate up to 18V with reduced performance.
  • To ensure stability, it's essential to follow proper layout and grounding techniques, use a bypass capacitor between the power supply pins, and avoid capacitive loading on the output.
  • The maximum power dissipation of the MC1496BP is 1.5W, and it's essential to ensure that the device is properly heat-sinked to prevent overheating.
  • Yes, the MC1496BP can be used as a unity gain amplifier, but it's essential to ensure that the input impedance is matched to the source impedance to prevent signal attenuation.
  • To handle ESD protection, it's recommended to use ESD protection devices such as diodes or resistors on the input and output pins, and to follow proper handling and storage procedures to prevent damage.
