- Part Number MC1496D
- Manufacturer onsemi
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE H
- Released Date Jan 7, 2020
- Last Modified Date Sep 19, 2024 2:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC1496D Details
-
Manufacturer Part Number:
MC1496D
-
Brand Name:
onsemi
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC-14 NB
-
Package Description:
SOIC-14
-
Pin Count:
14
-
Manufacturer Package Code:
751A-03
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
-
YTEOL:
0
MC1496D Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MC1496D is 5V to 15V, although it can operate up to 18V with reduced performance.
-
To ensure stability, it's essential to follow proper layout and grounding techniques, use a bypass capacitor (e.g., 0.1uF) between the supply pins, and avoid capacitive loading on the output.
-
The maximum power dissipation of the MC1496D is 1.5W, and it's essential to ensure that the device does not exceed this rating to prevent overheating and damage.
-
Yes, the MC1496D can be used as a unity gain amplifier by connecting the output directly to the input, but this may compromise stability and bandwidth. It's recommended to use a gain of at least 2 to ensure stability.
-
To handle ESD protection, use a static-safe workstation, handle the device by the body, and avoid touching the pins. You can also use ESD protection devices, such as diodes or resistors, in the circuit.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MC1496D Overview

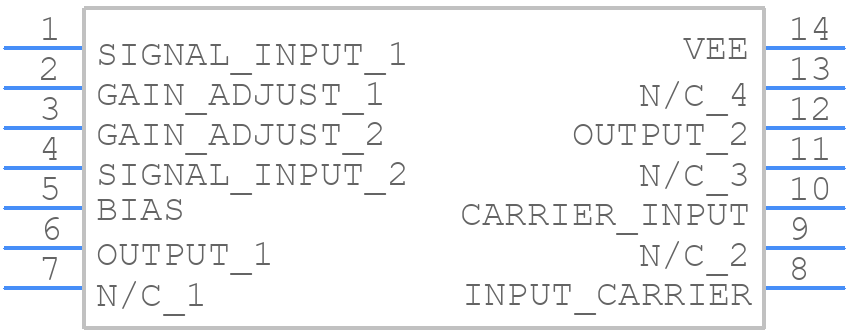

Use the download button to access the MC1496D schematic symbol, PCB footprint, and 3D model.
