MC1496P - onsemi

Description: Obsolete - Balanced Modulator and Demodulator

Download MC1496P Model

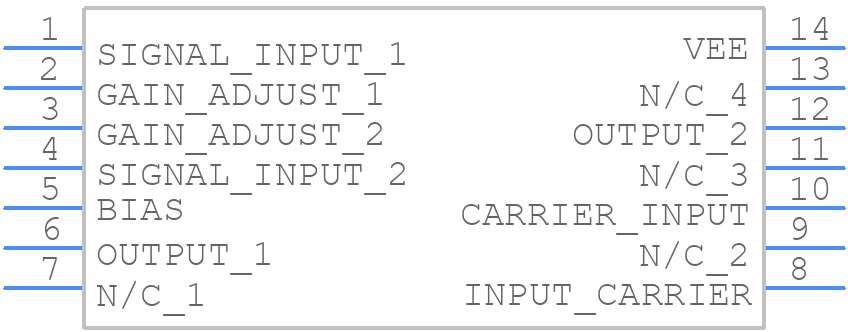

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

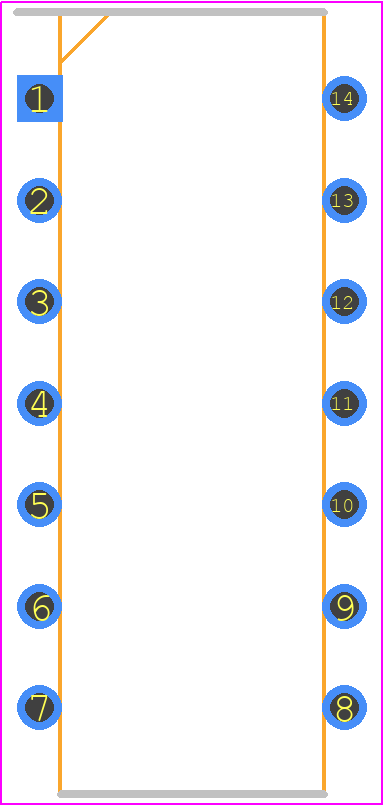

MC1496P - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP−141
click to zoom
3D Models
MC1496P - onsemi  - 3D model - Dual-In-Line Packages - PDIP−141
click to zoom

MC1496P Details

  • Manufacturer Part Number:

    MC1496P

  • Brand Name:

    onsemi

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-14

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    646-06

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.19 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MC1496P Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC1496P is 5V to 15V, with a typical operating voltage of 12V.
  • To ensure stable operation, it is recommended to decouple the power supply lines with capacitors (e.g., 0.1uF and 10uF) and to use a stable voltage regulator. Additionally, ensure that the input signals are within the recommended voltage range and that the device is operated within the recommended temperature range.
  • The maximum power dissipation of the MC1496P is 1.5W. It is essential to ensure that the device is operated within this power dissipation limit to prevent overheating and damage.
  • Yes, the MC1496P can be used as a voltage-controlled amplifier. The device has a voltage-controlled gain feature, which allows the gain to be controlled by an external voltage. This feature makes it suitable for applications such as audio amplifiers and tone controls.
  • To reduce noise and hum in your circuit, ensure that the power supply lines are well-filtered and decoupled. Additionally, use shielded cables and keep the circuit layout compact to minimize electromagnetic interference. You can also add noise-reducing components such as ferrite beads or chokes to the circuit.
