Part Image

MC17XS6500CEK - NXP

Description: High-Side Switch, 12V, Penta 17mOhm, SOICEP 32 / TUBE MULTIPLE DP

Download MC17XS6500CEK Model

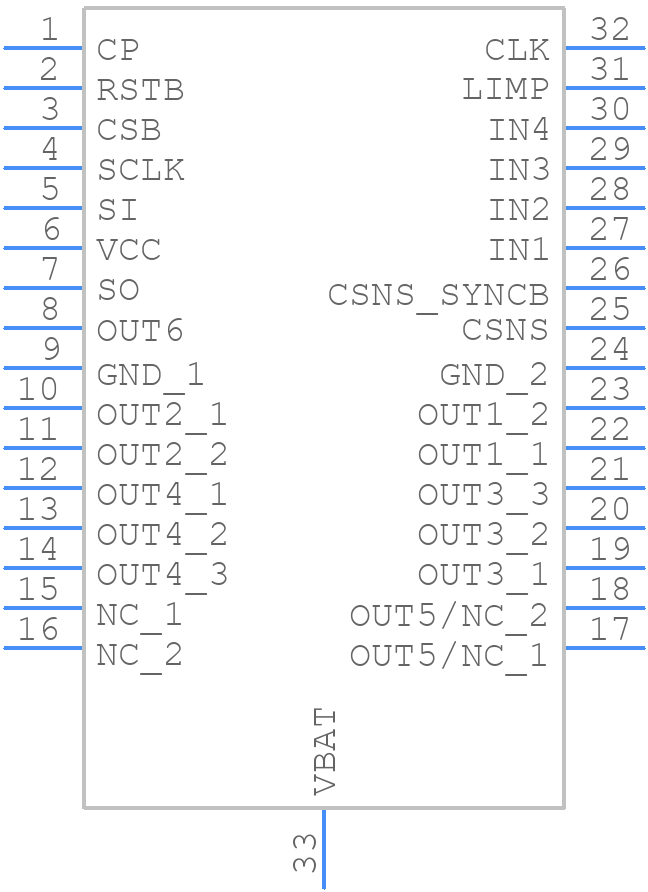

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

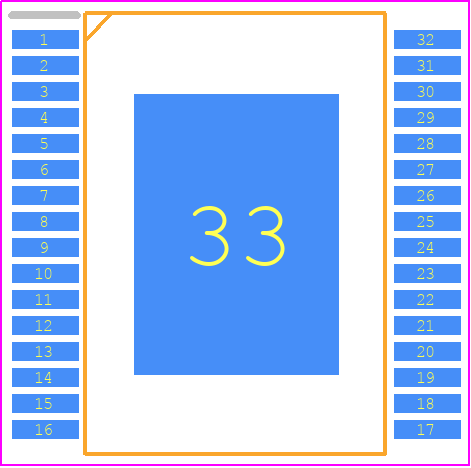

MC17XS6500CEK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - soic-32
click to zoom
3D Models
MC17XS6500CEK - NXP  - 3D model - Small Outline Packages - soic-32
click to zoom

MC17XS6500CEK Details

  • Manufacturer Part Number:

    MC17XS6500CEK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MC17XS6500CEK Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC17XS6500CEK is -40°C to 125°C, with a maximum junction temperature of 150°C.
  • The clock settings for the MC17XS6500CEK can be configured using the Clock Control Register (CCR) and the Clock Divider Register (CDR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum data transfer rate for the MC17XS6500CEK's SPI interface is 50 Mbps.
  • Yes, the MC17XS6500CEK can operate with a 3.3V power supply, but it's recommended to use a 1.8V power supply for optimal performance and power consumption.
  • The MC17XS6500CEK has several power-saving modes, including Sleep, Doze, and Shutdown. These modes can be implemented using the Power Management Register (PMR) and the Clock Control Register (CCR). Refer to the datasheet for specific register addresses and bit settings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC17XS6500CEK Overview

Use the download button to access the MC17XS6500CEK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC17X, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.

Parts related to MC17XS6500CEK

Showing 0 results

MC17XS6500CEK Alternates

Showing results

Image Part Number Model
Part Image MC17XS6500BEK NXP Semiconductors

LOAD SWITCH, Fixed, 1 Channel, PDSO32
