Part Image

MC22008B6W-BNMLW-V2 - MIDAS

Description: DISPLAY, ALPHANUMERIC, 20X2, WHITE; Character Count x Line:20 x 2; Display Appearance:White on Blue; Logic Voltage:5V; Interface Type:Parallel; Font Set:English, Japanese; Display Mode:Transmissive; Character Size:9.22mm; LCD DisplayRoHS Compliant: Yes

Download MC22008B6W-BNMLW-V2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

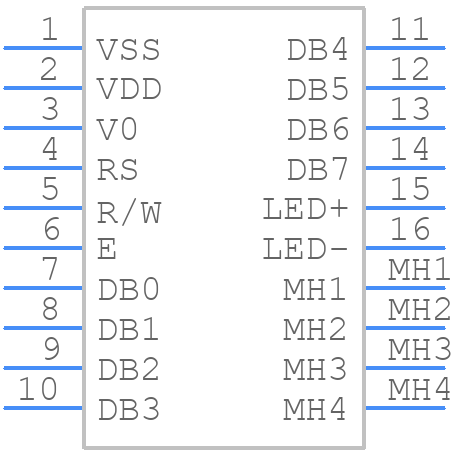

Symbol
MC22008B6W-BNMLW-V2 - MIDAS - PCB symbol
click to zoom

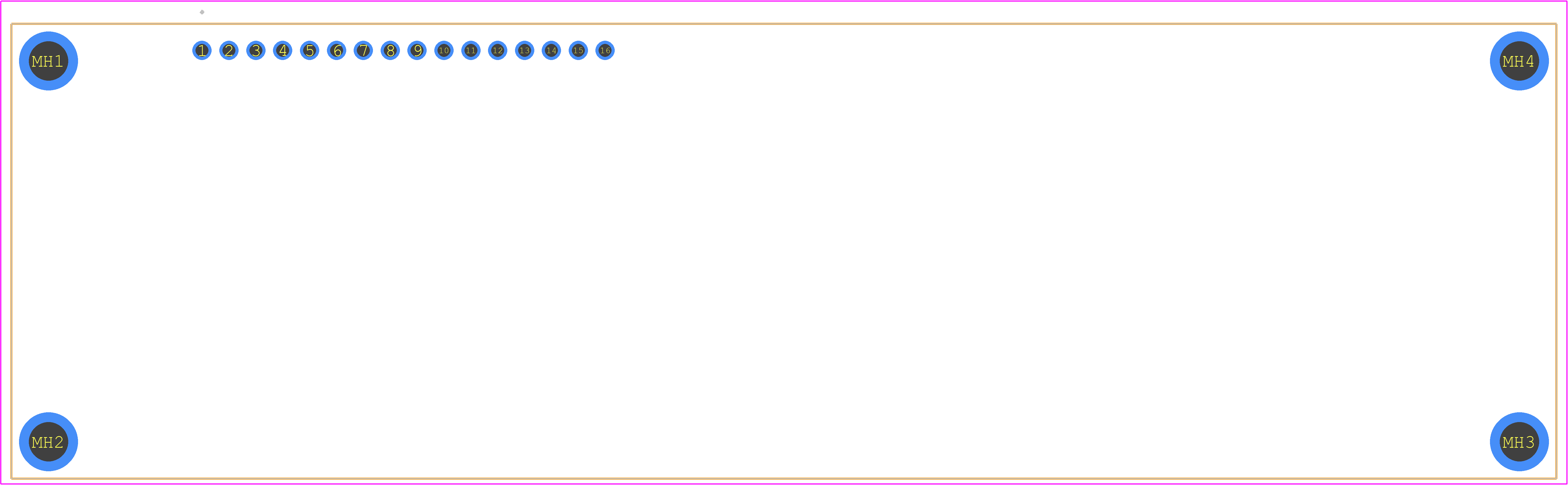

PCB Footprints
MC22008B6W-BNMLW-V2 - MIDAS PCB footprint - Other - Other - MC22008B6W-BNMLW-V2-1
click to zoom
3D Models
MC22008B6W-BNMLW-V2 - MIDAS - 3D model - Other - MC22008B6W-BNMLW-V2-1
click to zoom

MC22008B6W-BNMLW-V2 Details

  • Manufacturer Part Number:

    MC22008B6W-BNMLW-V2

  • Manufacturer:

    Midas Displays

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MC22008B6W-BNMLW-V2 Overview

Use the download button to access the MC22008B6W-BNMLW-V2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC220, or try a keyword search, such as Other Memory ICs
