MC22XS4200DEKR2 - NXP

Description: Power Switch ICs - Power Distribution High-Side Switch, 24V, Dual 22mOhms, SOICW-EP 32

Download MC22XS4200DEKR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

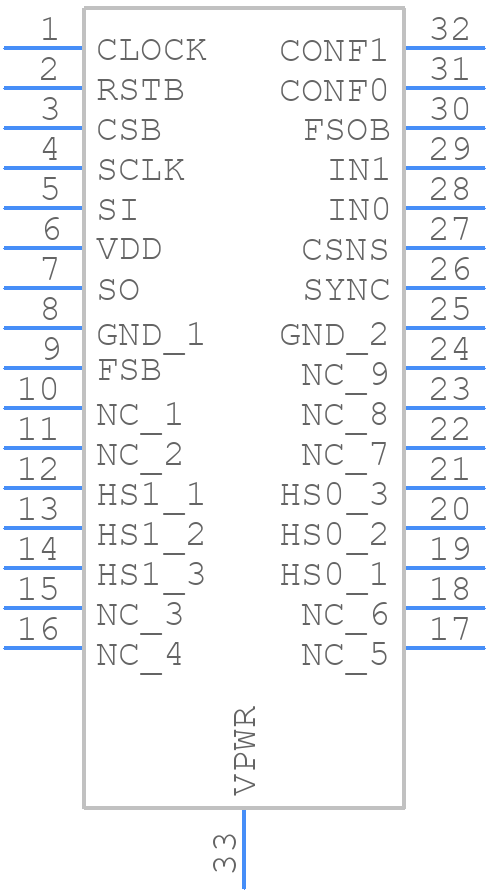

MC22XS4200DEKR2 - NXP - PCB symbol
click to zoom
PCB Footprints

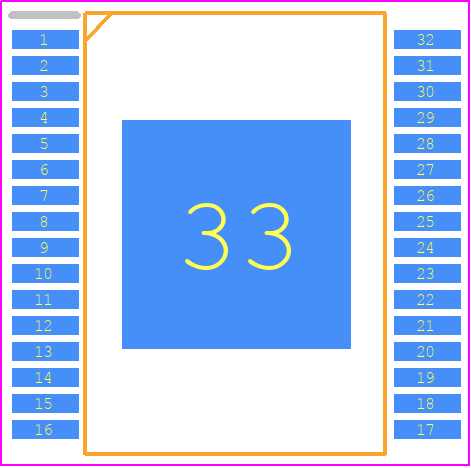

MC22XS4200DEKR2 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOICW-EP 32
click to zoom
3D Models
MC22XS4200DEKR2 - NXP - 3D model - Small Outline Packages - SOICW-EP 32
click to zoom

MC22XS4200DEKR2 Details

  • Manufacturer Part Number:

    MC22XS4200DEKR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC22XS4200DEKR2 Overview

Use the download button to access the MC22XS4200DEKR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC22X, or try a keyword search, such as Peripheral Drivers
