MC32PF1510A5EP - NXP

Description: Power Management Specialized - PMIC Power Management IC, 3 Buck Regs, 3 LDO Regs, 40 QFN

Download MC32PF1510A5EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

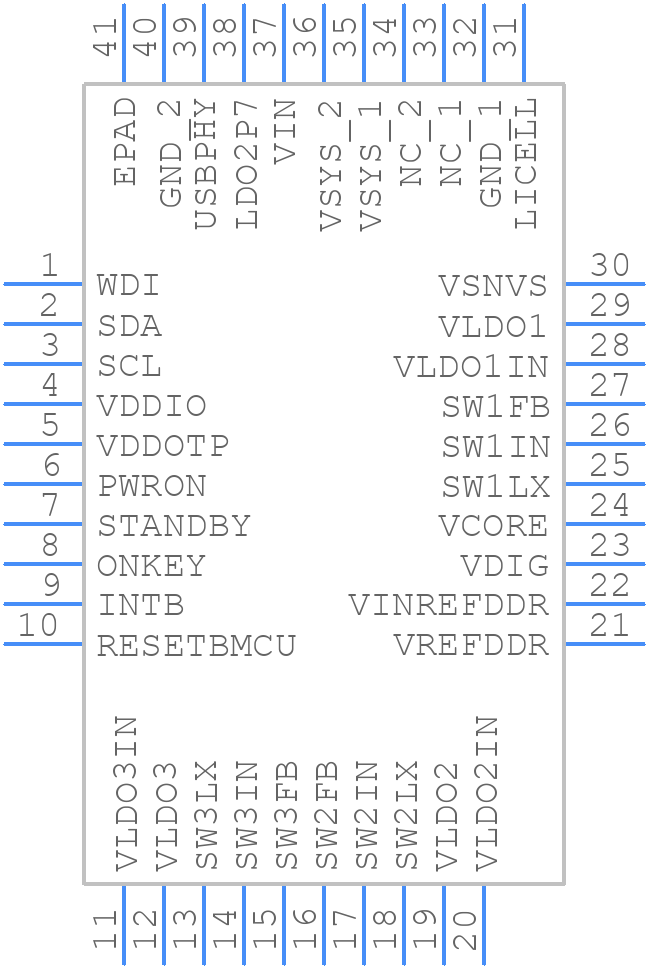

MC32PF1510A5EP - NXP - PCB symbol
click to zoom
PCB Footprints
MC32PF1510A5EP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 40
click to zoom
3D Models
MC32PF1510A5EP - NXP - 3D model - Quad Flat No-Lead - QFN 40
click to zoom

MC32PF1510A5EP Details

  • Manufacturer Part Number:

    MC32PF1510A5EP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    4

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MC32PF1510A5EP Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the MC32PF1510A5EP is 32.768 kHz, which is the typical frequency used for real-time clock (RTC) applications.
  • To configure the MC32PF1510A5EP for low-power mode, you need to set the Power Mode Control Register (PMC) to the desired low-power mode (e.g., Sleep, Deep Sleep, or Power Down). Additionally, you may need to disable unnecessary peripherals and set the clock frequency to a lower value to minimize power consumption.
  • The maximum operating temperature range for the MC32PF1510A5EP is -40°C to +105°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MC32PF1510A5EP can be used with an external memory. The device has an external memory interface that supports various memory types, including SRAM, NOR Flash, and NAND Flash. However, you need to ensure that the external memory is compatible with the device's memory interface and follows the recommended memory access protocols.
  • To implement secure boot on the MC32PF1510A5EP, you need to use the device's built-in security features, such as the Secure Bootloader (SBL) and the Fuse Box. You need to generate a secure boot image, store it in the device's internal flash memory, and configure the SBL to authenticate the boot image. Additionally, you may need to use cryptographic algorithms, such as AES and SHA, to ensure the integrity and authenticity of the boot image.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC32PF1510A5EP Overview

Use the download button to access the MC32PF1510A5EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC32P, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
