- Part Number MC32PF1550A0EP
- Manufacturer NXP
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 40
- Released Date Dec 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC32PF1550A0EP Details
-
Manufacturer Part Number:
MC32PF1550A0EP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-40
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Date Of Intro:
2018-09-28
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
5
MC32PF1550A0EP Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout and thermal management guide in their application note AN12255. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
-
To minimize power consumption, configure the device to use the lowest possible clock frequency, disable unused peripherals, and use the power-saving modes (e.g., Sleep, Deep Sleep, or Power Down). Additionally, optimize the voltage regulator settings and use a low-power oscillator.
-
To ensure EMC and minimize EMI, follow NXP's guidelines for PCB layout, component placement, and shielding. Use a ground plane, decouple power supplies, and add EMI filters as needed. Also, ensure that the device is properly configured to minimize radiated emissions.
-
NXP provides a Secure Boot and Secure Firmware Update solution using their Bootloader and Secure Firmware Update tools. Implementing secure boot and firmware updates requires a deep understanding of the device's security features, such as the Secure Boot mechanism, encryption, and digital signatures.
-
The MC32PF1550A0EP is designed for industrial and automotive applications, but it's essential to consider the operating temperature range, humidity, and vibration tolerance. Ensure that the device is properly packaged, sealed, and protected from environmental stressors to prevent damage or malfunction.
Trust Checks
Community Provided
System Verified
Community Approved
MC32PF1550A0EP Overview

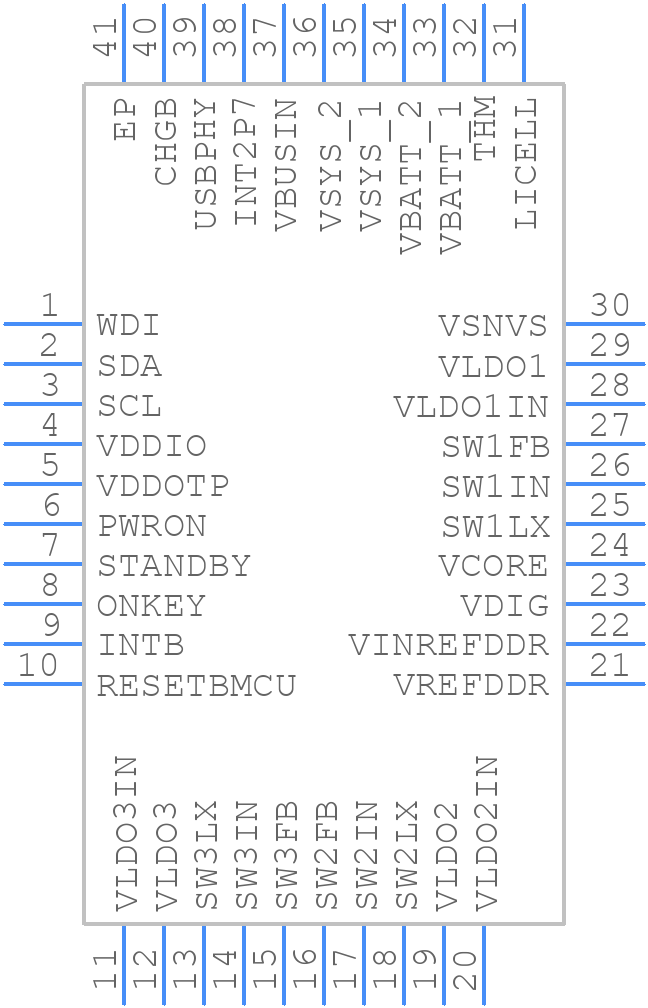

Use the download button to access the MC32PF1550A0EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC32P,
or try a keyword search, such as Power Management Circuits
