MC32PF1550A9EP - NXP

Description: Power Management Specialized - PMIC Power Management IC, 3 Buck Regs, 3 LDO Regs, Charger, 40 QFN 5x5

Download MC32PF1550A9EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

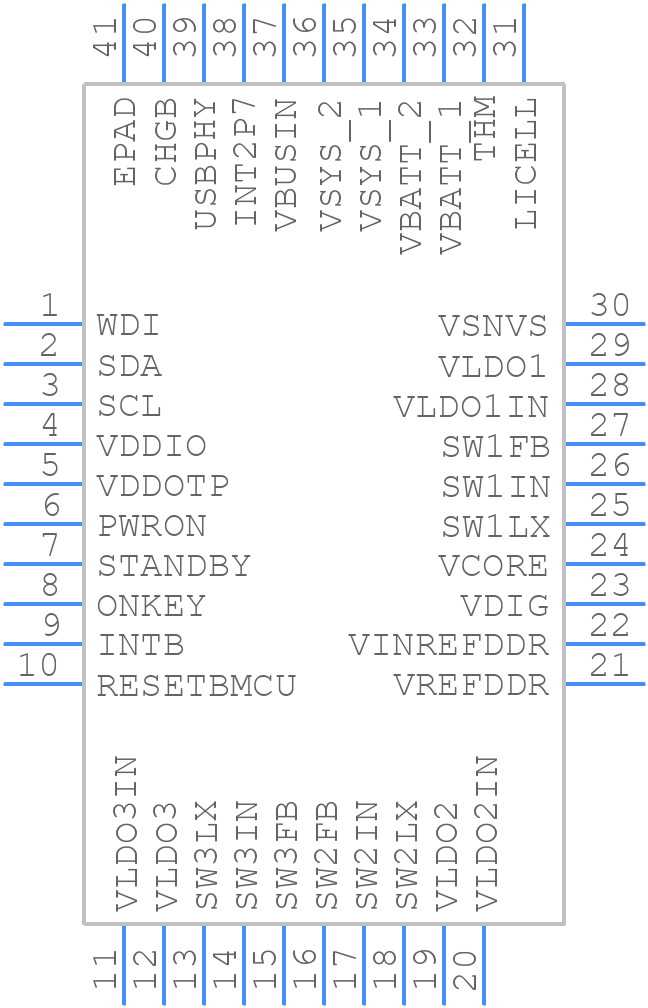

MC32PF1550A9EP - NXP - PCB symbol
click to zoom
PCB Footprints
MC32PF1550A9EP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 QFN (SOT1369-4)
click to zoom
3D Models
MC32PF1550A9EP - NXP - 3D model - Quad Flat No-Lead - 40 QFN (SOT1369-4)
click to zoom

MC32PF1550A9EP Details

  • Manufacturer Part Number:

    MC32PF1550A9EP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-06-10

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MC32PF1550A9EP Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency is 32.768 kHz, which is a standard frequency for real-time clock (RTC) applications.
  • To achieve low power consumption, configure the MCU to use the Very Low Power (VLP) mode, which reduces power consumption to approximately 1.5 μA. This can be done by setting the PMCTRL register to VLP mode and disabling unnecessary peripherals.
  • The maximum operating temperature range for the MC32PF1550A9EP is -40°C to 105°C, making it suitable for industrial and automotive applications.
  • To implement secure boot mechanisms, use the MCU's built-in Secure Boot feature, which allows you to authenticate the boot loader and application code using digital signatures. This can be done by generating a secure boot key, signing the boot loader and application code, and configuring the MCU to verify the signatures during boot-up.
  • The maximum frequency for the MCU's internal clock is 48 MHz, which can be achieved by using the internal PLL (Phase-Locked Loop) clock multiplier.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC32PF1550A9EP Overview

Use the download button to access the MC32PF1550A9EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC32P, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
