A good PCB layout for the MC33025PG should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is properly sized and placed close to the output pin. Also, make sure the output voltage is within the recommended range, and the input voltage is stable and within the specified range. Additionally, consider adding a small resistor (e.g., 10 ohms) in series with the output capacitor to dampen oscillations.
The MC33025PG can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure proper heat sinking to prevent overheating.
To protect the MC33025PG from overvoltage and undervoltage conditions, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits. These can be implemented using external components such as zener diodes, resistors, and capacitors.
A ceramic capacitor with a value of 1-10uF and a voltage rating of 10-16V is recommended for the input capacitor. The capacitor should be placed close to the input pin and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33025PG Overview

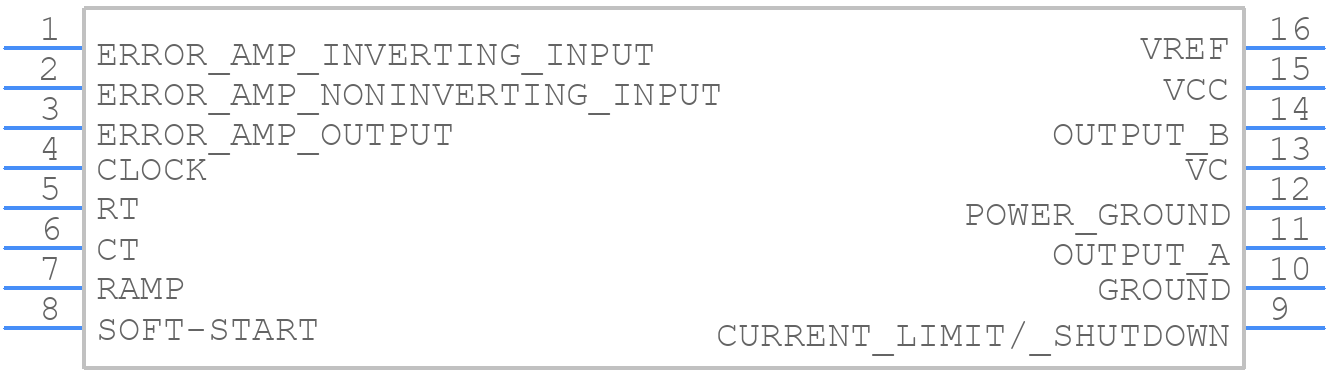

Use the download button to access the MC33025PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Switching Regulator or Controllers
