A good PCB layout for the MC33033DWG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
The MC33033DWG is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the MC33033DWG can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components and careful design to ensure proper operation.
To troubleshoot issues with the MC33033DWG, start by checking the PCB layout, component values, and soldering quality. Then, use an oscilloscope to measure the input and output voltages, and the switching node voltage. Compare the results with the expected waveforms in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33033DWG Overview

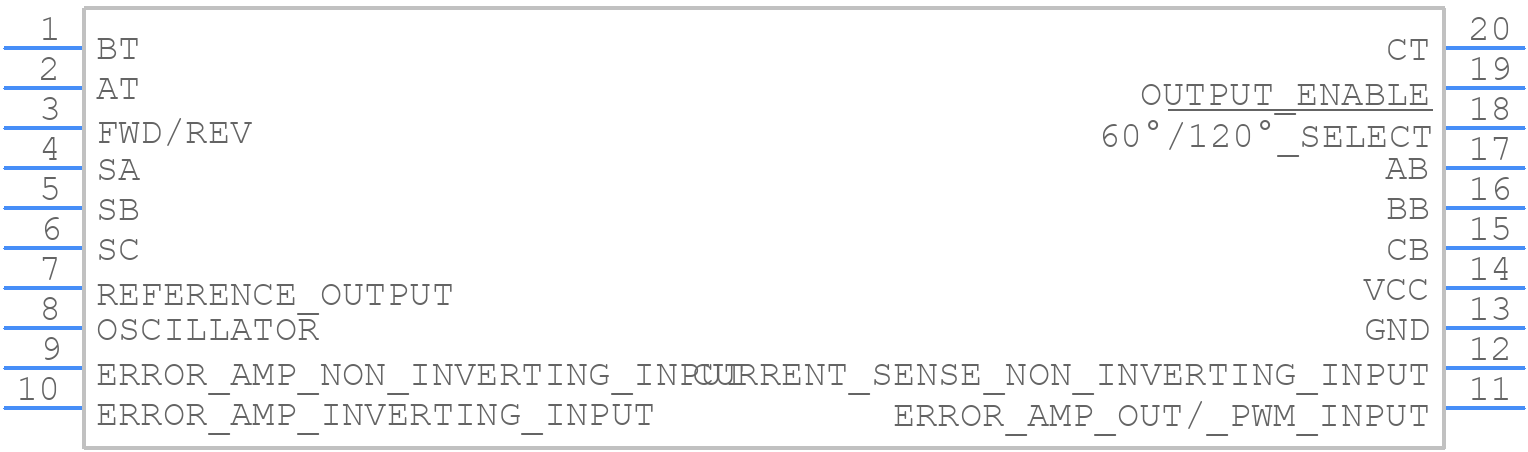

Use the download button to access the MC33033DWG schematic symbol, PCB footprint, and 3D model.
