Description:Undervoltage Lockout; Internal Thermal Shutdown; 6.25 V Reference Capable of Supplying Sensor Power; Fully Accessible Error Amplifier for Closed Loop Servo Applications; High Current Drivers Can Control External 3-Phase MOSFET Bridge; Selectable 60° /300° or 120° /240° Sensor Phasings; Cycle-By-Cycle Current Limiting; Also Efficiently Control Brush DC Motors with External MOSFET H-Bridge; 10 to 30 V Operation
A good PCB layout for the MC33033DWR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from other noise-sensitive components.
To ensure the MC33033DWR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges.
The recommended input capacitor value for the MC33033DWR2G is 10uF to 22uF, with a voltage rating of 10V to 16V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended.
To troubleshoot issues with the MC33033DWR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for output voltage ripple or oscillations.
Yes, the MC33033DWR2G is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended operating conditions and PCB layout guidelines to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33033DWR2G Overview

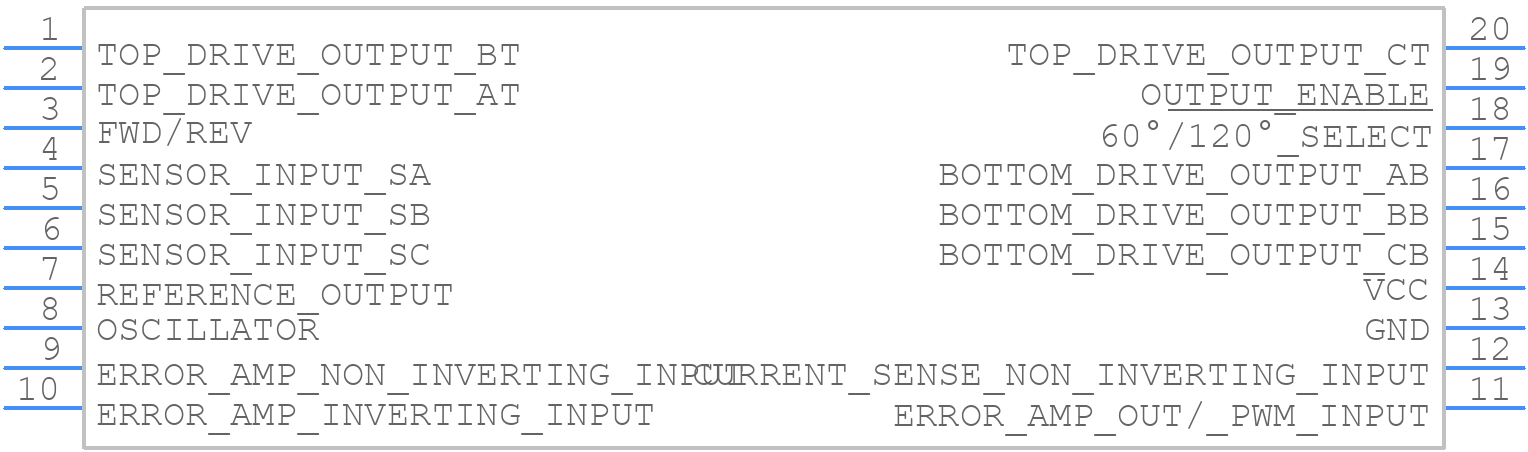

Use the download button to access the MC33033DWR2G schematic symbol, PCB footprint, and 3D model.
