MC33039D - Motorola

Description: CLOSED LOOP BRUSHLESS MOTOR ADAPTER Operation Down to 5.5 VOperating Ambient Temperature Range TA – 40 to + 85 °C

Download MC33039D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

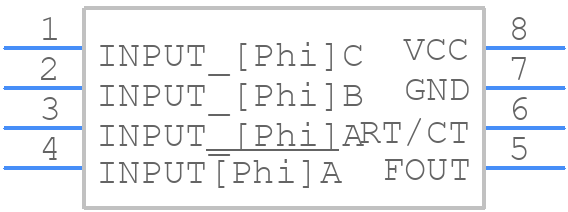

MC33039D - Motorola - PCB symbol
click to zoom
PCB Footprints
MC33039D - Motorola PCB footprint - Small Outline Packages - Small Outline Packages - D SUFFIX PLASTIC PACKAGE CASE 751–05 ISSUE N (SO–8)
click to zoom
3D Models
MC33039D - Motorola - 3D model - Small Outline Packages - D SUFFIX PLASTIC PACKAGE CASE 751–05 ISSUE N (SO–8)
click to zoom

MC33039D Details

  • Manufacturer Part Number:

    MC33039D

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, SOP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SO(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    8.25 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    6.25 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL
