MC33064DM-5R2G - onsemi

Description: --

Download MC33064DM-5R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

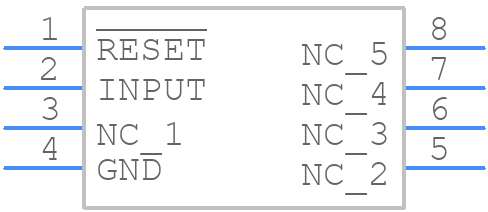

MC33064DM-5R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33064DM-5R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro8
click to zoom
3D Models
MC33064DM-5R2G - onsemi - 3D model - Small Outline Packages - Micro8
click to zoom

MC33064DM-5R2G Details

  • Manufacturer Part Number:

    MC33064DM-5R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MC33064DM-5R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33064DM-5R2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range (4.7uF to 22uF), the input capacitor is at least 1uF, and the output voltage is within the recommended range (1.8V to 5.5V). Also, ensure that the device is operated within the recommended temperature range (-40°C to 125°C).
  • The maximum input voltage that the MC33064DM-5R2G can handle is 6.5V. Exceeding this voltage may damage the device.
  • The MC33064DM-5R2G is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures. It's recommended to derate the device's performance by 1% for every 10°C above 85°C.
  • The output voltage of the MC33064DM-5R2G can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (typically 1.25V).
