A good PCB layout is crucial for the MC33067DW. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to reduce EMI. Refer to onsemi's application notes and layout guidelines for more information.
Choose input capacitors with low ESR and high ripple current rating. Output capacitors should have low ESR and be rated for the output voltage. A good starting point is to use 10uF to 22uF capacitors for both input and output. Refer to the datasheet for more guidance.
The MC33067DW is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the output current and voltage to ensure reliable operation at higher temperatures. Consult the datasheet and onsemi's application notes for more information.
Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. You can also add external circuitry, such as a voltage clamp or a crowbar circuit, to protect the device. Consult the datasheet and onsemi's application notes for more guidance.
The recommended input voltage range for the MC33067DW is 7V to 18V. Operating outside this range may affect performance, efficiency, and reliability. Consult the datasheet for more information.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MC33067DW Overview

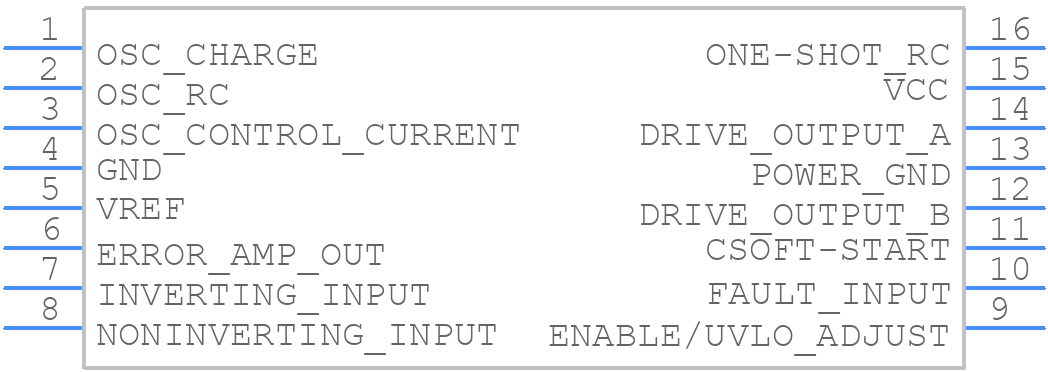

Use the download button to access the MC33067DW schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Switching Regulator or Controllers
