Description:4.0 MHz Error Amplifier; Internally Trimmed Bandgap Reference; Low Startup Current for Off-Line Operation; Variable Frequency Oscillator with a Control Range Exceeding 1000:1; Zero Voltage Switch Resonant Mode Operation; Precision One-Shot Timer for Controlled Off-Time; Dual High Current Totem Pole Outputs; Selectable Undervoltage Lockout Thresholds with Hysteresis; Programmable Soft-Start Circuitry; Enable Input; Pb-Free Packages are Available*
A good PCB layout for the MC33067PG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is properly sized, and the output voltage is within the recommended range. Also, make sure the input voltage is stable and within the recommended range. Additionally, adding a small capacitor (e.g., 10nF) between the output and ground can help prevent oscillations.
The MC33067PG can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the datasheet's thermal derating curves to ensure the device can handle the required output current.
To protect the device, use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. You can also add a voltage clamp or a TVS diode to absorb voltage spikes and transients.
A 10uF to 22uF ceramic or electrolytic capacitor with a voltage rating of 10V or higher is recommended for the input capacitor. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33067PG Overview

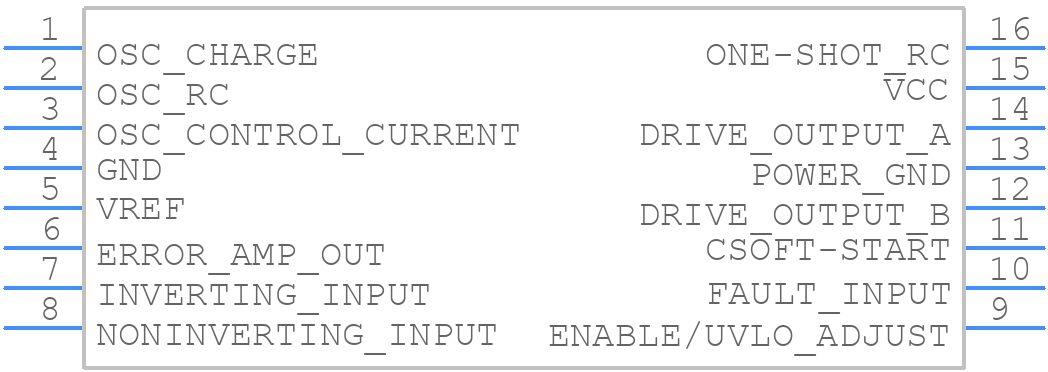

Use the download button to access the MC33067PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Switching Regulator or Controllers
