MC33151DR2G - onsemi

Description: Efficient High Frequency Operation; Pin Out Equivalent to DS0026 and MMH0026; Two Independent Channels with 1.5 A Totem Pole Output; CMOS/LSTTL Compatible Inputs with Hysteresis; Output Rise and Fall Times of 15 ns with 1000 pF Load; Undervoltage Lockout with Hysteresis; Low Standby Current; Enhanced System Performance with Common Switching Regulator Control ICs

Download MC33151DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

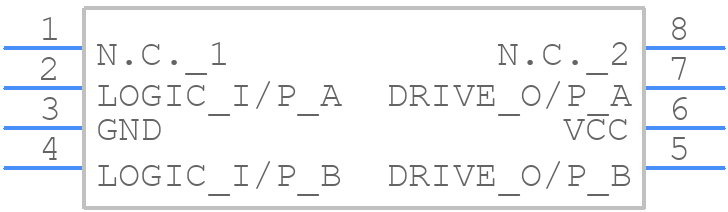

MC33151DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33151DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33151DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33151DR2G Details

  • Manufacturer Part Number:

    MC33151DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    3.9 mm

MC33151DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33151DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from the device can help reduce EMI.
  • To ensure the MC33151DR2G operates within the recommended junction temperature range, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Also, avoid overheating the device during soldering and handling.
  • The recommended input capacitor value for the MC33151DR2G is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
  • Yes, the MC33151DR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the MC33151DR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple, noise, and oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33151DR2G Overview

Use the download button to access the MC33151DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC331, or try a keyword search, such as MOSFET Drivers
