MC33152DR2G - onsemi

Description: Output Rise and Fall Times of 15 ns with 1000 pF Load; CMOS/LSTTL Compatible Inputs with Hysteresis; Low Standby Current; Two Independent Channels with 1.5 A Totem Pole Outputs; Undervoltage Lockout with Hysteresis; Efficient High Frequency Operation; Enhanced System Performance with Common Switching Regulator Control ICs; Pb-Free Packages are Available

Download MC33152DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

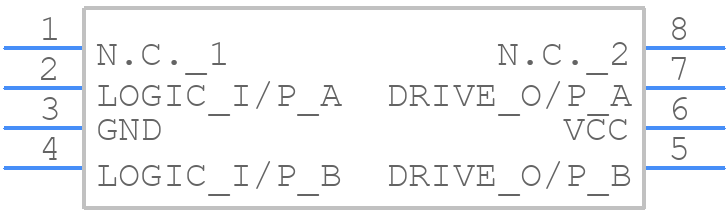

Symbol
MC33152DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33152DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33152DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33152DR2G Details

  • Manufacturer Part Number:

    MC33152DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.12 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    3.9 mm

MC33152DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33152DR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency components.
  • To ensure the MC33152DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
  • The recommended input capacitor value for the MC33152DR2G is 10uF to 22uF, with a voltage rating of at least 1.5 times the maximum input voltage. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
  • The MC33152DR2G is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure you provide adequate heat sinking and consider derating the device's performance.
  • To troubleshoot issues with the MC33152DR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for signs of overheating, and ensure the device is not exposed to excessive voltage or current.
