MC33153DR2G - onsemi

Description: Undervoltage Lockout Optimized for IGBT's; Protection against Overcurrent and Short Circuit; Cost Effectively Drives Power MOSFETs and Bipolar Transistors; High Current Output Stage: 1.0 A Source/2.0 A Sink; Programmable Fault Blanking Time; Negative Gate Drive Capability; Protection Circuits for Both Conventional and Sense IGBTs; Pb-Free Packages are Available

Download MC33153DR2G Model

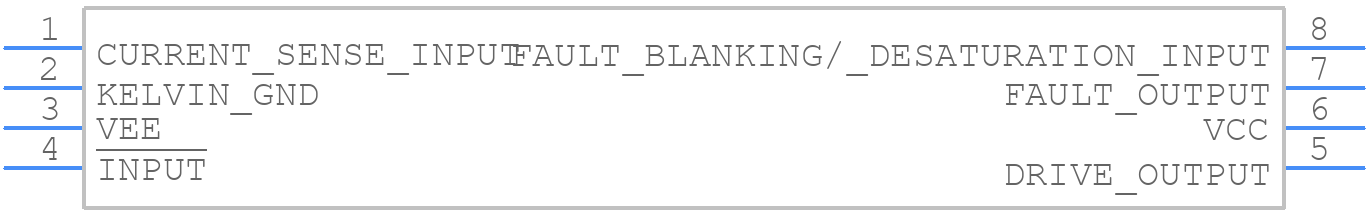

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33153DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 D SUFFIX
click to zoom
3D Models
MC33153DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 D SUFFIX
click to zoom

MC33153DR2G Details

  • Manufacturer Part Number:

    MC33153DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    3.9 mm

MC33153DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33153DR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is properly decoupled. Additionally, avoid overloading the output and ensure that the device is operated within its recommended operating conditions.
  • The MC33153DR2G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the MC33153DR2G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using automotive-grade processes. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for proper decoupling, PCB layout, and thermal management. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for more information.
