- Part Number MC33161D
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-8 NB CASE 751-07_j
- Released Date Oct 10, 2023
- Last Modified Date Oct 11, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC33161D Details
-
Manufacturer Part Number:
MC33161D
-
Brand Name:
onsemi
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC-8 Narrow Body
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
751-07
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
MC33161D Frequently Asked Questions (FAQs)
-
A good PCB layout for the MC33161D should follow the guidelines provided in the application note AND8039/D, which includes recommendations for component placement, trace routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
-
The input capacitor should be chosen based on the input voltage, output voltage, and output current requirements. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the maximum input voltage. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
-
The MC33161D is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. It's recommended to follow the thermal design guidelines provided in the datasheet and application notes to ensure reliable operation within the specified temperature range.
-
Yes, the MC33161D is suitable for high-reliability and automotive applications. It's built with high-reliability components and has undergone rigorous testing to ensure compliance with industry standards such as AEC-Q100. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
-
Troubleshooting common issues with the MC33161D typically involves checking the input voltage, output voltage, and output current, as well as verifying the PCB layout and component selection. The application notes and datasheet provide guidance on troubleshooting common issues, and onsemi also offers technical support resources to help engineers resolve problems quickly and efficiently.
Trust Checks
Community Provided
System Verified
Community Approved
MC33161D Overview

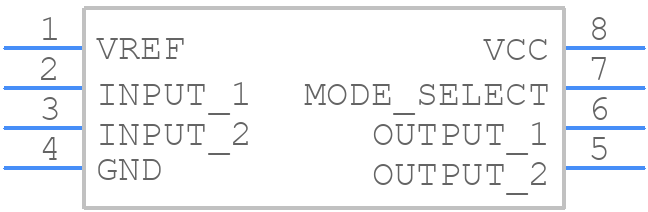

Use the download button to access the MC33161D schematic symbol, PCB footprint, and 3D model.
