MC33164D-5R2G - onsemi

Description: Comparator Hysteresis Prevents Erratic Reset; Reset Output Capable of Sinking in Excess of 6.0 mA; Internal Clamp Diode for Discharging Delay Capacitor; Temperature Compensated Reference; Economical TO-226AA, SO-8 and Micro-8 Surface Mount Packages; Guaranteed Reset Operation With 1.0 V Input; Monitors 3.0 V (MC34164-3) or 5.0 V (MC34164-5) Power Supplies; Extremely Low Standby Current: As Low as 9.0 µA; Precise Comparator Thresholds Guaranteed Over Temperature

Download MC33164D-5R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

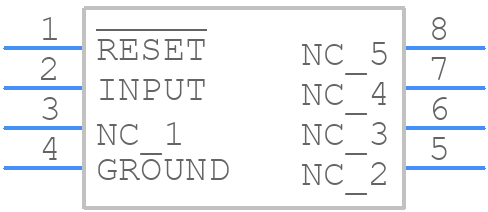

MC33164D-5R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33164D-5R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33164D-5R2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33164D-5R2G Details

  • Manufacturer Part Number:

    MC33164D-5R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.59

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.33V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC33164D-5R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33164D-5R2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range (22uF to 47uF), the input capacitor is at least 1uF, and the input voltage is within the recommended range (4.5V to 18V). Also, ensure that the device is operated within the recommended temperature range (-40°C to 125°C).
  • The MC33164D-5R2G can provide a maximum output current of 3A. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation.
  • The MC33164D-5R2G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • To protect the MC33164D-5R2G from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help to limit the voltage spikes and ensure reliable operation.
