MC33202D - onsemi

Description: Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground) • Input Voltage Range Includes both Supply Rails • Output Voltage Swings within 50 mV of both Rails • No Phase Reversal on the Output for Over−driven Input Signals • High Output Current (ISC = 80 mA, Typ) • Low Supply Current (ID = 0.9 mA, Typ) • 600 Output Drive Capability • Extended Operating Temperature Ranges (−40° to +105°C and −55° to +125°C) • Typical Gain Bandwidth Product = 2.2 MHz • NCV Prefix for Automotive a

Download MC33202D Model

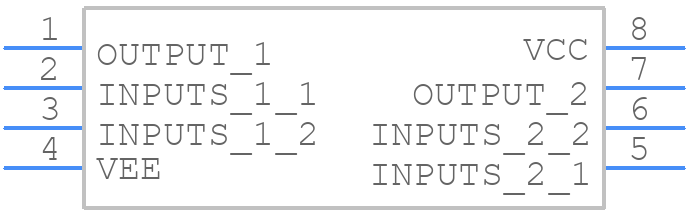

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33202D - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33202D - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33202D Details

  • Manufacturer Part Number:

    MC33202D

  • Brand Name:

    onsemi

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    235

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    2.25 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33202D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33202D involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet. Then, adjust the value based on the specific requirements of your application, taking into account the inductor's saturation current, DC resistance, and physical size.
  • The MC33202D is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C.
  • To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a compensation capacitor (CC) and a feedback resistor (RF) that meet the recommended values. If oscillations occur, try adjusting the CC and RF values or adding a small capacitor in parallel with the output capacitor.
  • The minimum input voltage required for the MC33202D to operate is 2.5V, but it's recommended to use an input voltage of at least 3V to ensure proper operation and to account for any voltage drops in the system.
