MC33202DMR2G - onsemi

Description: Low Supply Current (ID = 0.9 mA, Typ); Extended Operating Temperature Ranges (-40° to +105°C and -55° to +125°C); Output Voltage Swings within 50 mV of both Rails; Input Voltage Range Includes both Supply Rails; Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground); No Phase Reversal on the Output for Over-driven Input Signals; High Output Current (ISC = 80 mA, Typ); Typical Gain Bandwidth Product = 2.2 MHz; 600 W Output Drive Capability

Download MC33202DMR2G Model

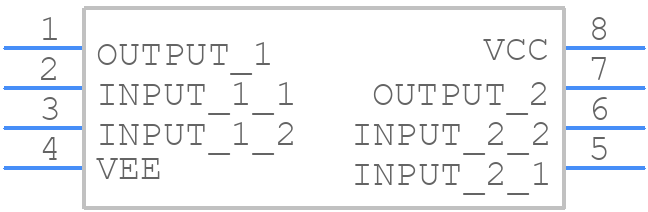

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33202DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro8 CASE 846A−02_
click to zoom
3D Models
MC33202DMR2G - onsemi  - 3D model - Small Outline Packages - Micro8 CASE 846A−02_
click to zoom

MC33202DMR2G Details

  • Manufacturer Part Number:

    MC33202DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Package Description:

    MICRO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.1 µA

  • Input Offset Voltage-Max:

    11000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    2.25 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3 mm
