MC33260DG - onsemi

Description: Obsolete - Compact Power Factor Correction Controller

Download MC33260DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

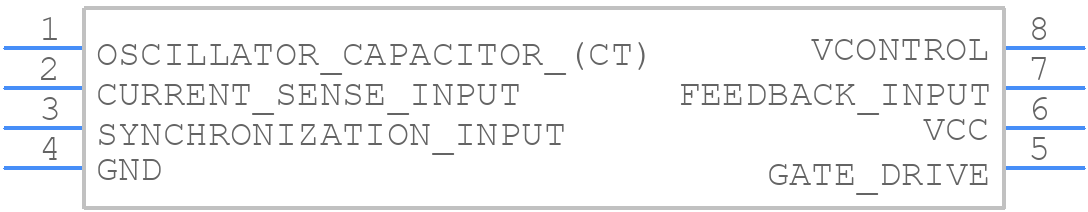

Symbol
MC33260DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33260DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MC33260DG
click to zoom
3D Models
MC33260DG - onsemi - 3D model - Small Outline Packages - MC33260DG
click to zoom

MC33260DG Details

  • Manufacturer Part Number:

    MC33260DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    13 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

MC33260DG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33260DG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the device to reduce noise and interference.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality inductor with a low DCR (Direct Current Resistance).
  • The MC33260DG is rated for operation from -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating guidelines.
  • Yes, the MC33260DG is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the MC33260DG, start by verifying the input voltage, output voltage, and component values. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
