MC33262DR2G - onsemi

Description: Zero Current Detector; Overvoltage Comparator Eliminates Runaway Output Voltage; Totem Pole Output with High State Clamp; Internal Startup Timer; Undervoltage Lockout with 6.0 V of Hysteresis; Low Startup and Operating Current; Trimmed 2% Internal Bandgap Reference; Supersedes Functionality of SG3561 and TDA4817 Simplified Block Diagram; One Quadrant Multiplier

Download MC33262DR2G Model

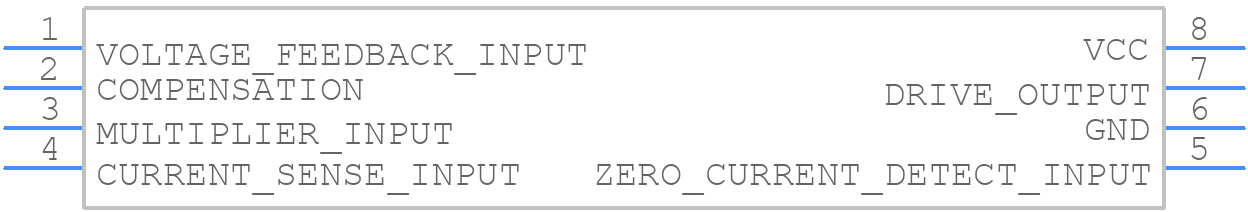

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33262DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33262DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33262DR2G Details

  • Manufacturer Part Number:

    MC33262DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    1999-01-01

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Nom:

    16 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    50 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC33262DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33262DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The maximum ambient temperature for the MC33262DR2G is 125°C. However, the device can operate at higher temperatures with derating. It's essential to ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
  • Yes, the MC33262DR2G is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a comprehensive set of reliability data, including FIT rates and MTBF calculations, to support high-reliability designs.
  • To troubleshoot issues with the MC33262DR2G, start by checking the input voltage, output voltage, and current. Verify that the component values, including the inductor and capacitors, are correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to inspect the switching node and output voltage waveforms for signs of instability or oscillation.
