Description:Zero Current Detector; Overvoltage Comparator Eliminates Runaway Output Voltage; Totem Pole Output with High State Clamp; Internal Startup Timer; Undervoltage Lockout with 6.0 V of Hysteresis; Low Startup and Operating Current; Trimmed 2% Internal Bandgap Reference; Supersedes Functionality of SG3561 and TDA4817 Simplified Block Diagram; One Quadrant Multiplier
A good thermal design should include a solid ground plane, thermal vias under the package, and a heat sink if possible. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND8031/D.
The MC33262PG requires a stable input voltage and a proper bias circuit. A recommended bias circuit is shown in the datasheet, but it's essential to ensure the voltage regulator used can provide a stable output voltage and sufficient current. Additionally, decoupling capacitors should be placed close to the device.
The internal voltage regulator is designed to provide a stable output voltage, but it has limitations. If the input voltage is too high or the output current is too high, an external voltage regulator should be used to ensure stable operation. The datasheet provides guidelines for selecting an external regulator.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for proper decoupling, correct biasing, and a stable input voltage. Use an oscilloscope to monitor the output voltage and current. If issues persist, consult the onsemi application note AND8031/D for troubleshooting guidelines.
The MC33262PG has a maximum junction temperature of 150°C. To prevent overheating, ensure good thermal design, use a heat sink if possible, and keep the device away from heat sources. Monitor the device temperature using the thermal shutdown feature or an external temperature sensor.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33262PG Overview

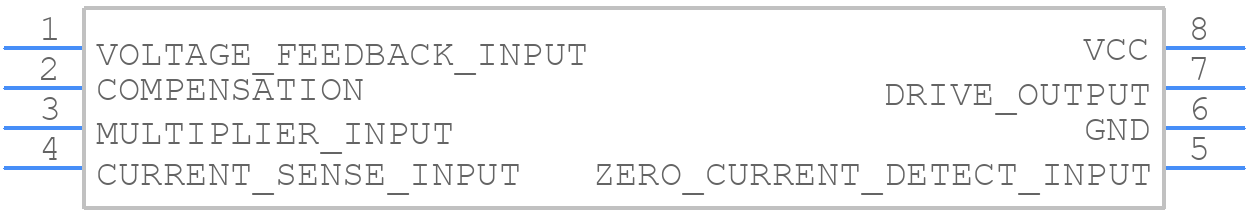

Use the download button to access the MC33262PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC332,
or try a keyword search, such as Switching Regulator or Controllers
